UNION CE3F Overhead Door Closer | EN 3

UNION CE3F Door Closer – Reliable Fire Door Safety

The UNION CE3F overhead door closer is a trusted, fixed-size 3 door closer designed for dependable fire door operation. Built for light duty use, this surface-mounted closer ensures controlled and reliable closing. It meets EN 1154 and CE standards, making it an essential choice for lightweight fire doors.

Key Product Features:

• Fixed power size EN 3
• Universal unit installation:

          Fig. 1/61 – Pull side mounting/transom mounting

          Fig. 66 – Push side mounting

• Maximum door width: 950mm
• Maximum door weight: 60kg
• Adjustable closing speed
• Adjustable latching action
• Maximum opening angle: 130°
• Silver finish
• Internal use
• Rack and pinion mechanism
• CE marked to EN 1154
• Certifire Approved CF 5495
• Fire tested to EN 1634-1
• EI120 / 120 minute fire rating - timber doors
• EI240 / 240 minute fire rating - metal doors
• 10 year manufacturer guarantee
• Supplied with parallel arm bracket and all fixings

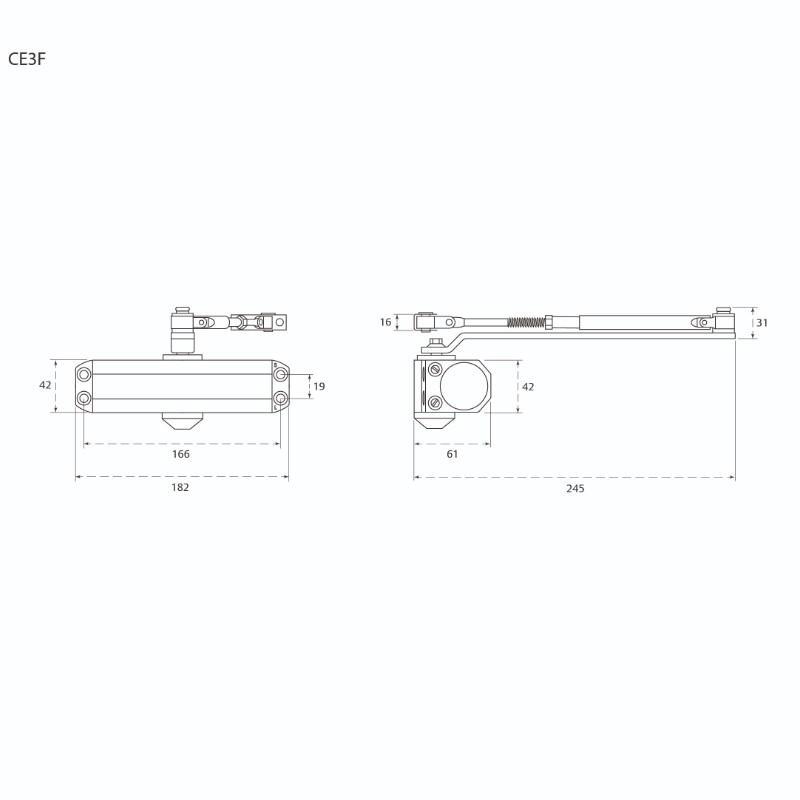

• Dimensions: 182mm x 42mm x 61mm
• Weight: 1.66kg

Fixed Power Size – Suitable for doors up to 950mm wide and 60kg in weight, offering reliable performance in light duty applications.

CE Marked and EN 1154 Certified – Meets fire safety and performance standards, making it compliant for timber fire doors up to 120 minutes rated. The metal doors, the fire rating extends to 240 minutes.

Adjustable Closing Speed and Latch Action – Allows precise control over door movement for safety, security, and ease of use.

Reversible Door Closing – No need to specify handing, making installation more straightforward. Push and pull side mounting make this small door closer a versatile option.

Reliable Fire Door Compliance and Control

Fire doors must close securely to perform their life-saving function, and the UNION CE3F fixed size 3 silver closer ensures compliance with fire regulations. It meets the required safety and performance criteria, giving specifiers, installers, and responsible persons confidence in its application.

The adjustable latching action and closing speed ensure controlled closing. This helps door closers from slamming, reducing noise in busy environments while maintaining effective closing force. Its compact size still allows for tailoring to the door, its location, and its users.

Whether installed in an office, school, or hotel, this closer contributes to fire compartmentation and occupant safety by ensuring doors close securely every time. Install matching Fire Door Keep Shut signs on both faces of the door.

Easy Installation with Flexible Mounting Options

Designed for ease of installation, the UNION CE3F closer can be mounted in three configurations: regular, transom, or parallel arm. This flexibility allows installers to choose the most suitable method for the door and frame, ensuring the best possible performance.

With a fully reversible design, it can be fitted to left or right-handed doors without additional parts, making it a straightforward choice for installers. The supplied fixings and fitting instructions simplify the process, ensuring a quick installation. We always suggest fitting a door stop with any closer to prevent damage to the wall and door. Choose floor mounted or projection stops depending on the setting.

A Dependable Solution for Your Doors

The UNION CE3F door closer is an excellent choice for light weight doors that require fire compliance, reliability, and ease of use. Its compact design, certified fire performance, and versatile installation options make it a go-to solution for facilities where safety is essential.

The CE3F is a practical, cost-effective, and compliant solution that delivers lasting performance. For fire-rated doors that need dependable, controlled closing, shop our fire door closers today.
