UNION CE24V Overhead Door Closer | EN 2-4

CE24V UNION Door Closer - Precision Engineering for Safety in Use

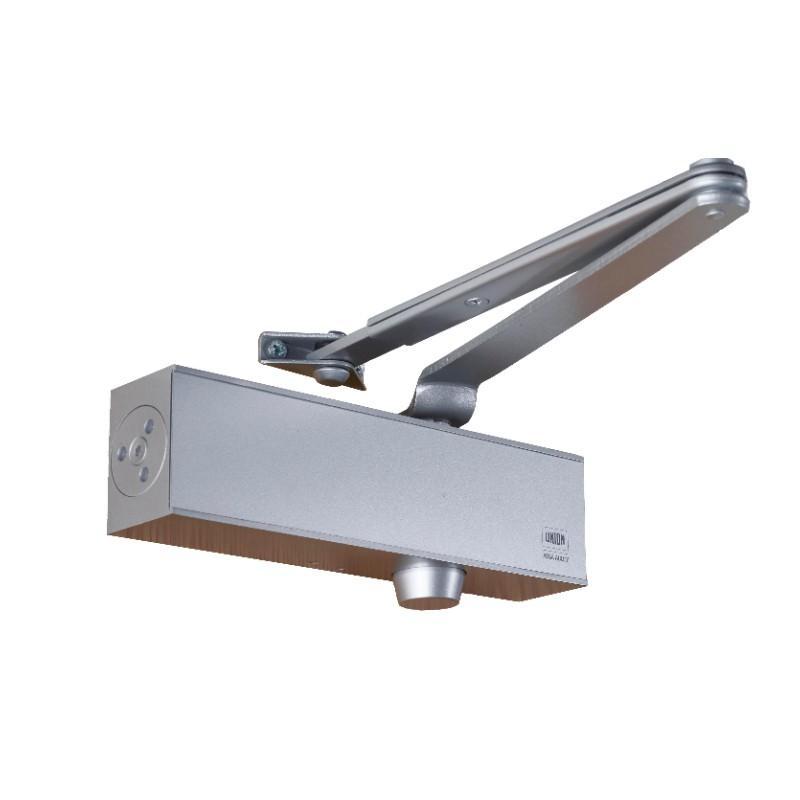

The UNION CE24V overhead door closer delivers robust, controlled closing. It’s suitable for a variety of door types, ensuring compliance with fire safety regulations while maintaining smooth, efficient operation.

This surface-mounted closer is ideal for fire doors in public and commercial facilities, ensuring effective closing with each operation. Adjustable power settings and a durable, high-performance mechanism provide dependable door control where safety and longevity matter.

Key Product Features:

• Adjustable power size EN 2-4
• Universal unit installation:

          Fig. 1/61 – Pull side mounting/transom mounting

          Fig. 66 – Push side mounting

• Maximum door width: 1100mm
• Maximum door weight: 80kg
• Adjustable closing speed
• Adjustable latching action
• Adjustable backcheck function from 75°
• Silver finish
• Internal use
• Aluminium body
• Rack and pinion mechanism
• CE marked to EN 1154
• Certifire Approved
• Fire tested to EN 1634-1
• 120 minute fire rating - timber doors
• 10 year manufacturer warranty
• Dimensions: 61mm x 233mm x 42mm
• Weight: 2.4kg

All required fixings, brackets, and fitting templates are included alongside the closer body and arm.

Adjustable Power Size 2-4 – Fine-tune the closing force to match door weight and usage requirements, ensuring optimal performance:

• Power size EN 2     Max. door width: 850mm Max. door weight: 40kg
• Power size EN 3     Max. door width: 950mm Max. door weight: 60kg
• Power size EN 4     Max. door width: 1100mm Max. door weight: 80kg

For heavier doors, the UNION CE26V door closer has adjustable power size EN 2-6 and can accommodate doors up to 1400mm wide and 120kg adjusted door weight.

Adjustable Closing and Latching Speed – Modify the speed to suit different doors and traffic levels, reducing wear and tear. Both are adjustable on-door for added ease of use.

Universal Installation – Suitable for standard, transom, and parallel arm fitting, offering flexibility for various door configurations. Fixing templates are supplied with each new unit.

Fire Rated and Certified – EN1634-1 tested making it a dependable choice for fire door applications. CE marked and Certifire approved to meet fire safety standards for compliance and continued assurance.

Backcheck Function – Remove the likelihood of damage to walls, users, and furniture with adjustable backcheck. The buffering after 75° of opening counteracts doors thrown open by force, whether from the wind or through misuse.

Superior Fire Safety and Compliance

Fire doors play a critical role in passive fire protection, and the UNION CE24V door closer ensures they function correctly. The 120-minute fire rating makes it suitable for a wide range of commercial and public buildings, from offices and schools to healthcare and hospitality settings. If hold open function is required, install with an electromagnetic door holder, like the UNION DoorSense.

When installed correctly, fire door closers help maintain compartmentation and prevent the spread of fire and smoke. Ensure all other door hardware is certified for the fire rating of the door, and install the correct type and size of intumescent seal strips.

UNION Door Closers for Versatile Installation

Whether it's fitted to a single fire door in an office or a corridor in a commercial building, the UNION CE24V adapts to different installation needs. It supports standard, transom, and parallel arm mounting, making it suitable for various door types and site requirements.

Its non-handed design further streamlines installation, eliminating the need for separate left- or right-hand models. It is also a suitable replacement for the Briton 1100 series of door closers.

Long-Term Reliability with UNION Door Closers

This overhead door closer is built to withstand high-frequency usage without compromising performance. Its rack and pinion mechanism ensures a consistent, controlled closing motion, reducing stress on door hardware and prolonging the lifespan of both the closer and the door. The adjustable latching and closing speeds allow customisation for each individual setting, with backcheck helping to prevent slamming while ensuring secure closure every time.

A Smart Choice for High-Performance Door Control

With its combination of fire safety certification, adjustable closing force, and installation versatility, the CE24V UNION overhead door closer is a trusted solution for businesses, contractors, and building managers. Whether you need hardware for a new-build project or retrofitting doors in an existing site, this door closer delivers reliability, compliance, and ease of use.

Ensure doors close securely, fire safety standards are met, and longevity is prioritised by choosing the right door closer for each door in your facility.
