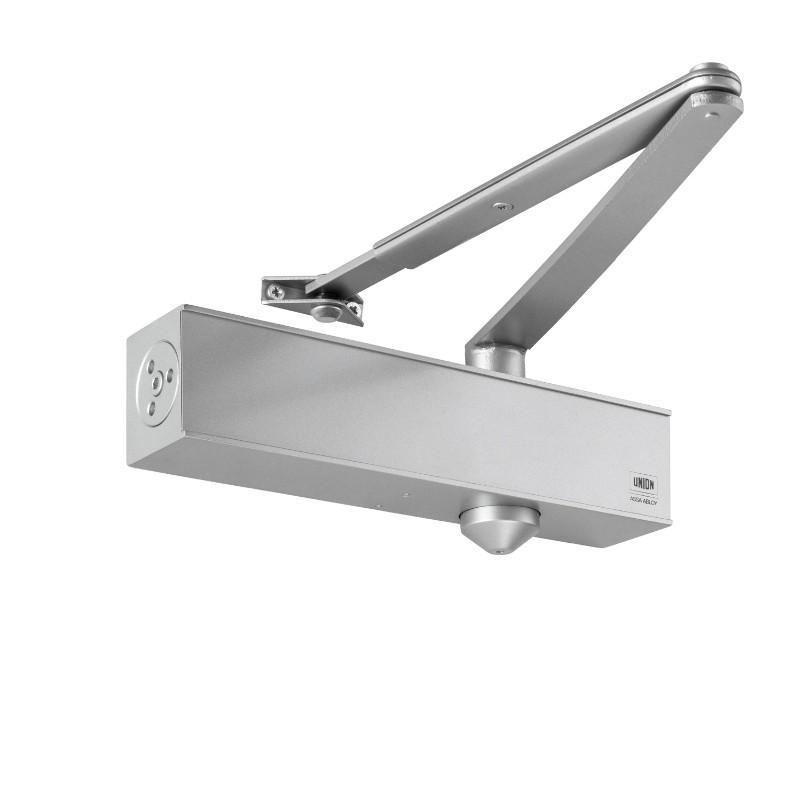

Union CE26V Door Closer In Silver

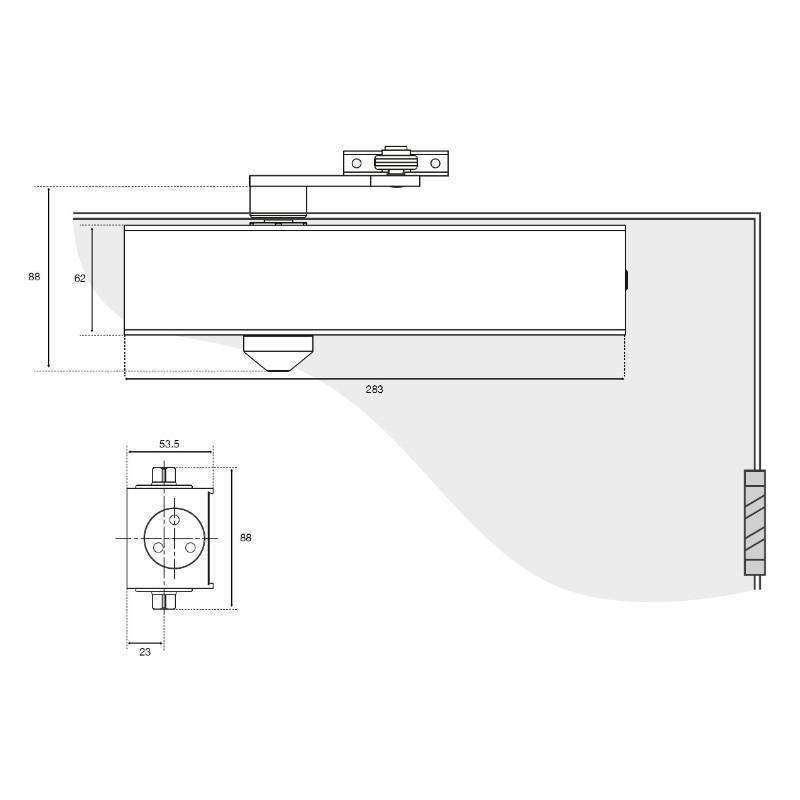

Union CE26V Door Closer Dimensions
Previous Product Image Next Product Image
Union CE26V Door Closer In Silver
Union CE26V Door Closer Dimensions

UNION CE26V Overhead Door Closer | EN 2-6

Union logo

The UNION CE26V overhead door closer has adjustable power size, backcheck, and can be installed on fire doors up to 1400mm wide and 120kg.

Read more
£74.50 VAT excl.
£89.40 VAT incl.
Code: DCUCE26V
4  In Stock
Shipping Icon
Next working day delivery Order before 3:30pm
Description
Product Documents
Reviews

CE26V UNION Door Closer – Reliable, Fire-Rated Control

The UNION CE26V overhead door closer delivers smooth, controlled door closing with each operation. Designed for high-traffic environments, it ensures doors close securely every time. This maintains safety and efficiency in a variety of facilities where reliable door hardware is a must.

With adjustable closing force and speed, it is simple to adapt to different door sizes and usage demands. The CE26V offers flexibility without compromising performance. Built to meet BS EN 1154 standards, this CE-marked door closer provides essential fire protection and compliance, making it a trusted choice for fire-rated doors.

Key Product Features:

  • Adjustable power size EN 2-6 in Fig.1 and Fig. 61
  • Adjustable power size EN 2-5 in Fig. 66
  • Universal unit installation:

          Fig. 1/61 – Pull side mounting/transom mounting

          Fig. 66 – Push side mounting

  • Maximum door width: 1400mm
  • Maximum door weight: 120kg
  • Adjustable closing speed
  • Adjustable latching action
  • Adjustable backcheck
  • Maximum opening angle: 160° Fig. 1 and Fig. 61
  • Maximum opening angle: 120° Fig. 66
  • Silver finish
  • Rack and pinion mechanism
  • CE marked to EN 1154
  • UKCA marked
  • 120 minute fire rating - timber doors
  • Fire tested to EN 1634-1 EI120/FD120
  • Certifire approved CF 410
  • 10 year manufacturer guarantee
  • Cover dimensions: 62mm x 283mm x 53.5mm
  • Weight: 3.3kg

Adjustable Power Size – Suits a range of door weights and widths, providing controlled closing. Install on heavier doors up to 120kg adjusted weight and wide doors up to 1400mm wide in EN 6.

EN1634-1 & CE Marked – Fully certified for fire door applications, supporting compliance with UK building regulations. Install alongside matching Fire Door Keep Shut signage on timber fire doors up to EI120 rating.

Multiple Fitting Options – Suitable for universal installation, maximising versatility on-site. Stock holding is minimal for facilities with such an adaptable unit on hand.

Adjustable Closing & Latching Speed – Customisable to specific door requirements, enhancing accessibility and security. Doors will shut swiftly but not too quickly behind users, securing access control doors after every use.

Tested to 500,000 Cycles – Engineered for durability, making it ideal for high-traffic environments. Regular checks are still required, so include your door closers and other ironmongery in your maintenance schedule.

Versatile Door Closer Installation

Fitting a door closer shouldn’t be a challenge. The UNION CE26V offers multiple mounting options, including regular (pull-side), transom (push-side), and parallel arm installation. This allows installers to adapt it to different site requirements with minimal hassle.

This flexibility makes it ideal for new installations and retrofit projects, ensuring a fit across a variety of timber doors. Whether you’re working on a fire door or high-use entrance, this model delivers reliable, compliant performance. If any fire doors require hold open, use this closer with an electromagnetic door holder.

Engineered for Longevity in High-Traffic Areas

Reliability matters when doors are used hundreds of times a day. The CE26V has been rigorously tested to 500,000 opening cycles, proving its durability. Its robust construction delivers consistent operation, so consider this unit for corridors and entranceways.

With its backcheck function, it also contributes to the longevity of the door, surrounding furniture, and walls. We’d always recommend fitting a door stop with any door closer, but backcheck function provides added protection. It dampens the force of the door when it’s opened with force. Whether this force is through misuse or the weather, backcheck stops the door being damaged, or knocking into a person or an obstacle.

A Trusted Closer Solution for Fire Door Compliance

Fire doors must function correctly in an emergency. This UNION door closer is Certifire approved and CE marked, ensuring it meets strict fire safety standards. By delivering reliable, automatic closing, it supports fire compartmentation and compliance with UK fire regulations. This makes it a crucial component in maintaining building safety, even on wide, heavy doors.

For dependable, high-performance door closers that combine durability, compliance, and ease of installation, the UNION CE26V is the perfect choice.
