Intumescent Kit for Simonswerk TECTUS TE 640 3D Energy Hinge

Intumescent Pack for Simonswerk TECTUS TE 640 3D Energy Hinges

Designed specifically for the Simonswerk TECTUS TE 640 3D Energy hinge, this 8824 intumescent kit enhances fire door performance by helping maintain integrity in the event of a fire. Ensure safety and compliance with purpose-designed intumescent protection for high-performance concealed hinge.

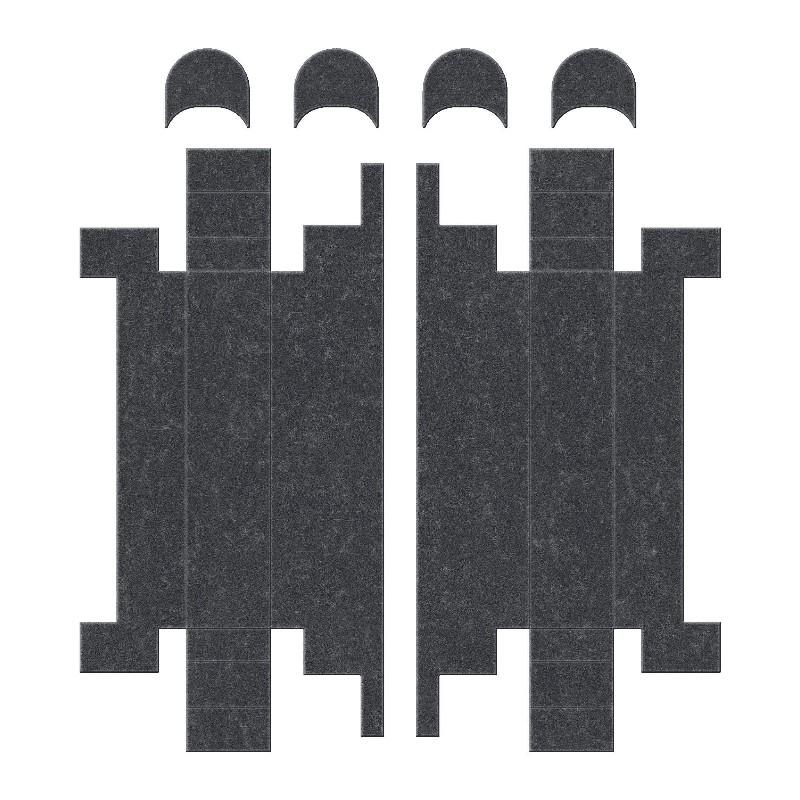

Each kit contains intumescent pieces for both the door and frame side, as well as behind the forends, ensuring full protection where it matters most. One intumescent kit is required per TECTUS hinge to ensure full compliance and protection.

Key Product Features:

• Black finish
• 2mm thick
• Suitable for 30 minute fire doors
• Tested to BS EN 1634-1:2014
• 6-piece kit
• Use with TECTUS TE 340 3D Energy hinges
• Mono-ammonium phosphate
• Self-adhesive backing

Fire Compliance for TECTUS Conductor Hinges

When fitting Simonswerk TE 640 3D Energy concealed door hinges to fire rated timber doors, this 8824 intumescent kit is a mandatory component. Designed to expand under intense heat, the kit fills the void around the hinge cut-out, helping to maintain the door’s integrity and slow the spread of fire and smoke.

• Tested and approved for use on 30 minute fire rated timber doors
• One kit required per hinge for full protection
• Certifire certificate is available in the product documents section

Always refer to the fire test evidence specific to your door to ensure a fully compliant installation.

Complete your fire door with our wide range of fire door hardware and intumescent protection.

Precision Cut for Convenient Installation

Each kit includes all necessary intumescent pads, cut to suit the TE 640 3D Energy hinge’s dimensions and fixing positions. No onsite trimming is needed, saving time and avoiding errors. Installers can fit this self-adhesive kit quickly and accurately.

Simonswerk TECTUS TE 640 3D Concealed Hinge

The Simonswerk TECTUS TE 640 3D Energy hinge system enables concealed cable transfer, making it an ideal choice for fire rated doors with electric locks or access control systems in commercial and public buildings where both functionality and aesthetics matter.

The TE 640 3D Energy hinges are available on our website in satin chrome, satin nickel, and satin stainless steel finishes, offering modern options to suit contemporary environments.

Explore the wider Simonswerk range, with concealed hinges suitable for both commercial and residential doors, available in a variety of finishes including matt black, bronze, and brass.

Reliable Fire Protection with Simonswerk Kits

Only tested, model specific intumescent kits should be used with TECTUS fire rated hinges to ensure compliance. The 8824 intumescent kit suits the Simonswerk TE 640 3D Energy hinges to uphold passive fire protection. Maintain safety, performance, and certification with reliable, tested fire door protection.
