ARROW 624EM Electromagnetic Hold Open/Swing Free Door Closer

ARROW 624EM Electromagnetic Hold Open/Swing Free Door Closer

The ARROW 624EM Electromagnetic Hold Open/Swing Free Door Closer operates at 24V DC and has hold open and swing free operation.



Print

ARROW 624EM Electromagnetic Hold Open/Swing Free Door Closer

DCF97

The ARROW 624EM Electromagnetic Hold Open/Swing Free Door Closer operates at 24V DC and has hold open and swing free operation.

Read more
£107.99 VAT excl.
£129.59 VAT incl.

Description

ARROW 624EM Electromagnetic Hold Open/Swing Free Door Closer

The ARROW 624EM Electromagnetic Hold Open/Swing Free Door Closer is an extremely versatile electromagnetic door closer, designed to be linked to a fire alarm. The 624EM is part of the Freeman & Pardoe 600 series range of electromagnetic door closers and are supplied with an easy to use template.

Features:

  • Universal unit; meaning that it can be mounted in any application:

Figure 1/61 – For pull side mounting/transom mounting
Figure 66 – Push Side Mounting

  • 24V DC 85mA Operating Voltage
  • Power Size 3 in Figure 66 - suitable for doors up to 60kg and 950mm wide.
  • Power Size 4 in Figure 1/61 – suitable for doors up to 80kg and 1100mm wide.
  • Adjustable closing speed
  • Adjustable latching action
  • Swing Free/Hold Open mode using the cams supplied.

Please note that the 624EM swing free door closer is available in a range of finishes and cover shapes such as the square (standard) or Flowline and other power sizes (EN3, EN5 & EN6). Please contact us if you require these as they are also available to order.

Opening Range:

  • Max. 110 degrees installed on the pull side of the door.
  • Max. 170 degrees installed on the push side of the door.
24V DC
Silver
Fig 66 - Push Side Mounting
Fig 1 - Pull Side Mounting
Fig 61 - Push Side Transom Mounting
Swing Free
Hold Open

Product Manuals

Arrow 624EM - Technical Sheet
Arrow 624EM - Installation Instructions
Arrow 624EM - DOP

Video Transcript

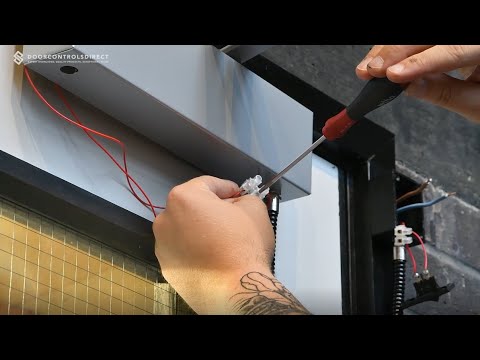

The arrow 624EM is boxed complete with full fitting instructions and all components required to be installed in a hold open or swing free operation on either push or pull side of the door. Once you have carried out a full health check on the door you can begin to install the door closer. To ensure correct positioning of the unit use the enclosed template as a guide to pilot drill holes for both the body and ear bracket. The mounting of the closer body to the door can now be completed quickly and easily. The mounting of the closer body to the door can now be completed quickly and easily. Fit the arm to the unit selecting the swing free or hold open cam dependent on the application required. Adjust the speed and latch action of the closer using the easily accessible adjustments and test the operation of the door. Fit the armoured cable loop on to the frame at approximately the same height as the door closer body. Secure the armoured cable loop to the hole in the cover nearest the frame. Connect the 2 red wires from the junction box to the wires from the coil on the closer, the polarity is not important. Always ensure that the electrical connections are made by a qualified professional. Ensure the test switch is on and check the door holds open or swings free dependant on application, ensure the doors closers in to the frame once the power has been removed.
