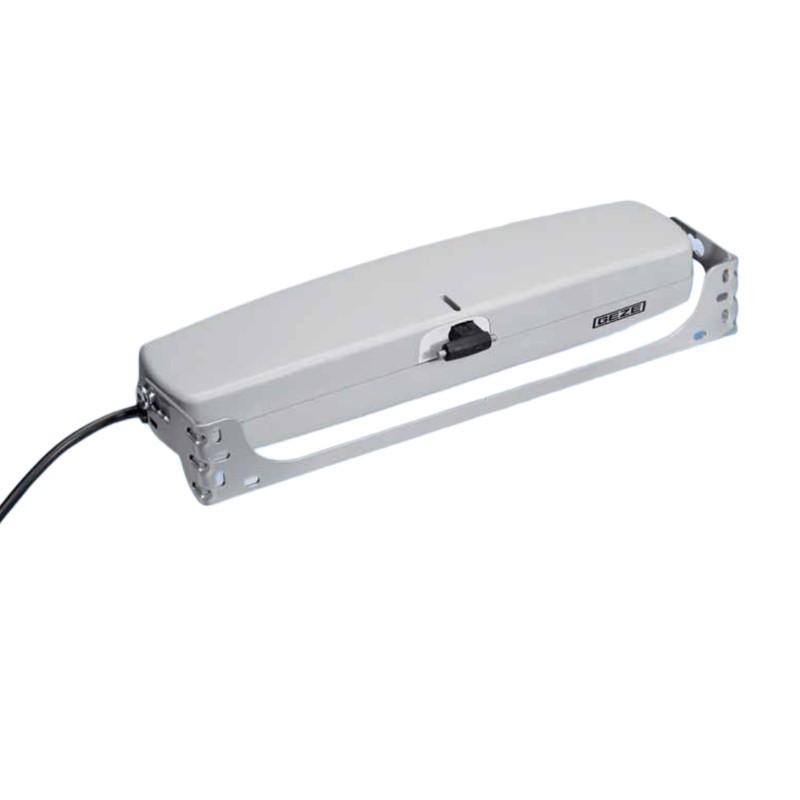

GEZE EOL N Chain Drive | 230V AC Electric Actuator

230V Electric Chain Drive Window Operator for High Windows

This 230V AC chain drive window actuator provides easy window operation for day-to-day ventilation. It is suitable for a variety of window types making it a smart choice for automating high-up windows, skylights, or light domes that are difficult to access.

This window drive is often installed in basic control setups, and an open/close switch can be incorporated, offering a simple and effective ventilation solution.

Key Product Features:

• Operating voltage: 230V AC 50Hz
• Stroke length: 200mm or 380mm (selectable at installation)
• Maximum push/pull force: 300N
• Stroke speed: 27mm/s
• Idle duration: 14 seconds
• Power consumption: 60W
• Current consumption: 0.26A
• Rated to IP30
• Weight: 1.1kg
• Dimensions: 335mm x 49mm x 80mm
• Finish options: Grey (128028), White (128030), Black (128029)

Natural Ventilation Window Opener for Different Window Types

This 230V window actuator can be used on aluminium, PVC, and timber windows that are:

• Inward opening and bottom hung
• Outward opening and top hung
• Rooflights and domes

The EOL window opener has overlap compensation:

• 0–22mm on bottom hung windows
• 0–30mm on top hung windows

Additional brackets may be required depending on the type of window and installation. You can also pair multiple window drives to operate large windows using a compatible electronic control device (not included). The EOL N documents can be downloaded for guidance or contact our team to discuss your setup.

Window Actuator with Adjustable Opening Width for Different Size Windows

The EOL N actuator stroke length can be adjusted to either 200mm or 380mm using an internal switch during installation. This flexibility supports a range of window sizes:

• 200mm stroke: minimum window height 250mm
• 380mm stroke: minimum window height 400mm
• Maximum casement height: 1500mm
• Casement width range: 350mm to 1200mm

Manual Control Made Simple for the GEZE EOL N Window Actuator

The GEZE EOL chain drive is ideal for straightforward window operation where manual control is preferred. It integrates easily into basic setups as it can be paired with a GEZE 230V vent switch to give building users control over opening and closing for high or hard-to-reach windows.

If your building needs a low-voltage solution, the GEZE EOL N 24V version is also available. Explore our full range of window actuators and accessories to build a window control system that suits every part of your building.
