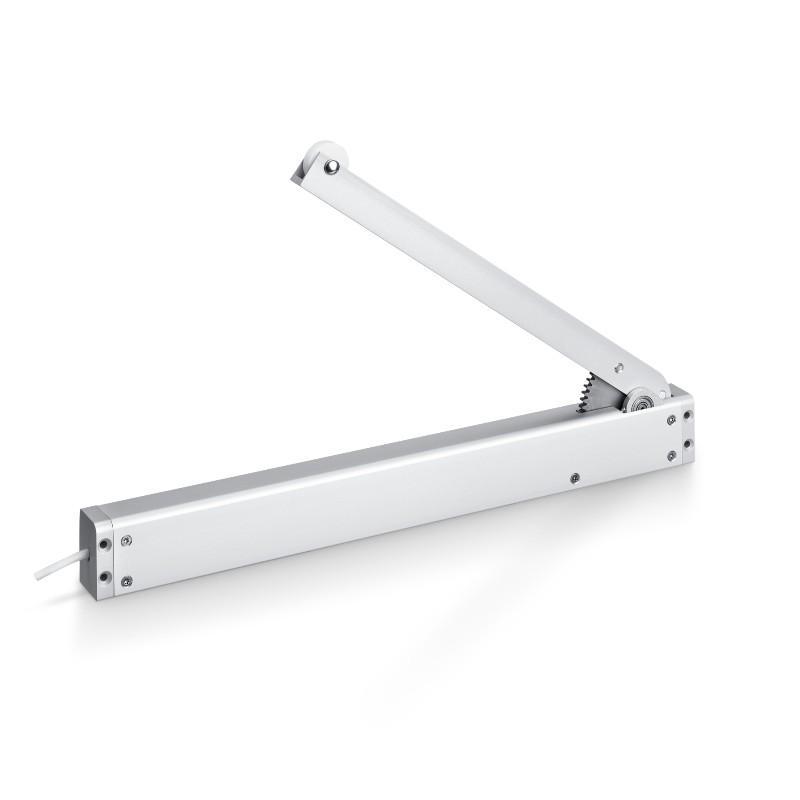

The GEZE RWA K600T retractable arm for air inlet doors in SHEV systems achieves 90° openings in 60 seconds for effective smoke and heat ventilation.
Read more
The GEZE RWA K600T retractable arm is a high performance drive designed specifically for doors in SHEV systems. It is ideal for buildings that rely on air inlet doors to manage smoke extraction and ventilation in an emergency. The SHEV system is activated externally via a signal from the building’s fire alarm system. Activation is typically achieved using a volt-free normally open/common (NO/C) contact from a dedicated fire alarm interface or the auxiliary output of the fire panel. When the fire alarm is triggered, this contact closes to initiate the SHEV sequence.
This unit is commonly installed on single or double leaf air inlet doors. It’s engineered for demanding environments where wide door opening angles are critical.
The GEZE RWA K 600 T is an air inlet retractable arm for doors in ventilation systems. Its high torque output and robust retractable arm deliver reliable operation.
It can be fitted either on the hinge side or the opposite hinge side of the door. The flexibility of fitting orientation allows this actuator to adapt to different door layouts without compromising performance or installation quality.
Brackets may be required to complete your installation and are sold separately. Installation instructions are available in the Product Documents section of this page, where you’ll also find further technical information and fitting guidance.
Whether you're working with a surface mounted or concealed door closer, the K600T works in tandem with most setups. The K600T arm is often paired with a surface mounted door closer on the opposite side of the leaf.
Explore our complete range of door closers, including options from GEZE such as the Boxer concealed door closer.
To ensure reliable operation of the GEZE RWA K 600 T, you might need a few key components, sold separately, to complete the setup:
To complete your installation, brackets may be needed and are sold separately. For pull side mounting, both the K600-T and K600-R brackets may be required. The T bracket fixes to the door and the R bracket attaches to the frame.
This door actuator unit runs on 24V DC with a max current draw of 1.4A. GEZE offer a range of DIN rail PSUs and a compatible surface housing.
A controller is required, compatible options include:
While the K 600 T is designed for doors, we also offer a range of electric window openers for smoke and natural ventilation. Explore our full range of window actuators or contact our team to discuss your needs.
