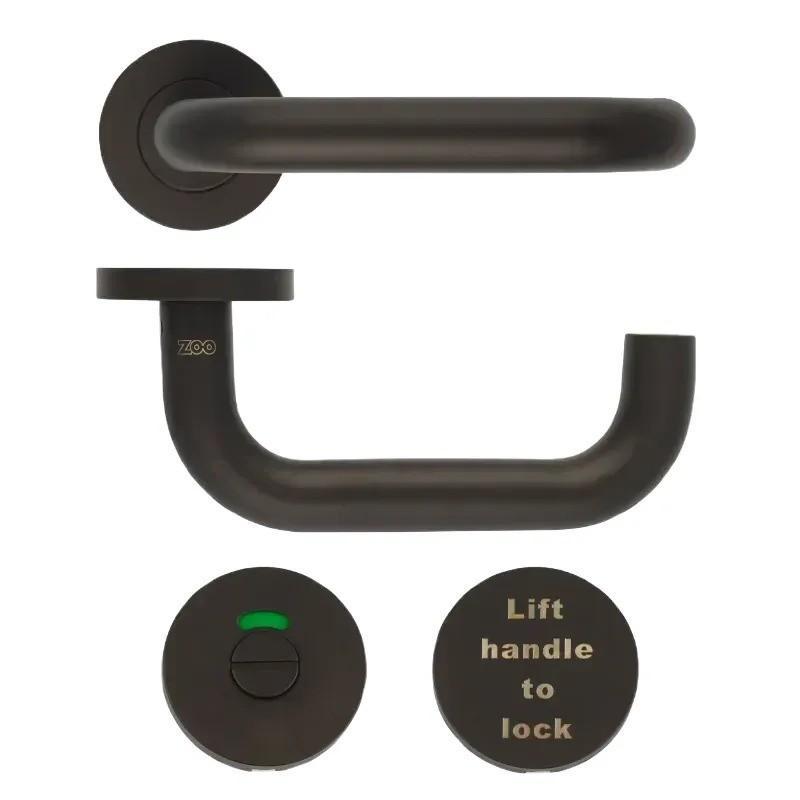

ZOO ZCS030LL Grade 304 Lift To Lock Return to Door Lever Handle Set

ZOO Lift To Lock Lever Handle Set

The ZOO ZCS030LL lift to lock handles are ideal for use on toilet doors, as they meet the requirements of BS8300 for accessible design. Choose from a choice of 2 stocked finishes. Use in conjunction with the ZDL7260LL lift to lock bathroom lock case, which is available with square or radiused forends.

Key Product Features:

• Grade 304 stainless steel
• 19mm return to door lever
• 52mm x 8mm push on rose
• Satin stainless steel or black finish
• 67mm projection
• 121.5mm lever length
• Emergency coin release
• 'Lift Handle to Lock' blank rose
• To suit 35-54mm thick doors
• Unsprung round rose
• Complies with BS8300 design requirements
• Supplied with bolt through fixings
• Tested to 200,000 cycles
• Tested on FD30 and FD60 timber doors BS EN 1634-1

Satin Stainless Steel Finish Only:

• High contrast text for improved legibility
• Features braille
