Simonswerk TECTUS TE 240 3D Concealed Hinges

TECTUS TE 240 3D Adjustable Concealed Door Hinges

The Simonswerk TECTUS TE 240 3D concealed hinges deliver 3D adjustable technology and clean aesthetics for residential doors. Known for their durability and ease of movement, these multi-axis door hinges provide superior functionality without compromising the visual appeal of your doors, with an added bonus of being maintenance-free.

Key Product Features:

• Choice of 6 finishes
• 3D adjustment
• Maximum load capacity: 60kg
• Suitable for timber, steel, and aluminium frames
• Fully concealed hinge system
• Non-handed
• Maintenance-free slide bearings
• Suitable for rebated and unrebated flush doors
• Maximum opening angle: 180°
• Residential use
• CE, IFT,  and UKCA quality marked

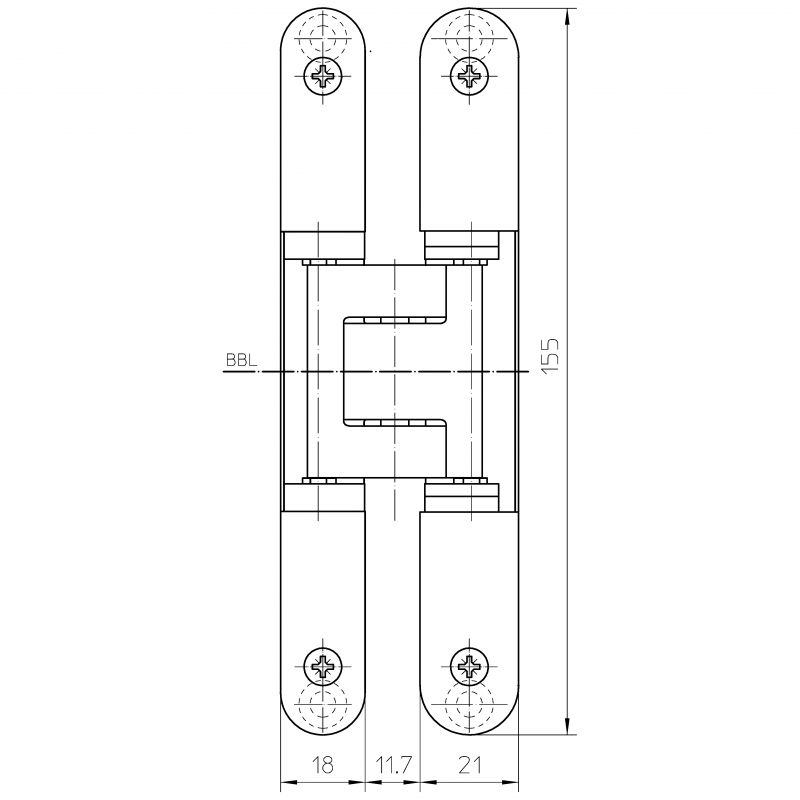

• Overall dimensions: 155mm x 50.7mm

Discreet Visual Impact

When the door is closed, TECTUS TE 240 3D hinges remain completely hidden, delivering a clean look to timber doors. This invisibility is ideal for residential projects with a minimalist objective. With these invisible hinges, doors and frames maintain a smooth, uninterrupted aesthetic appeal.

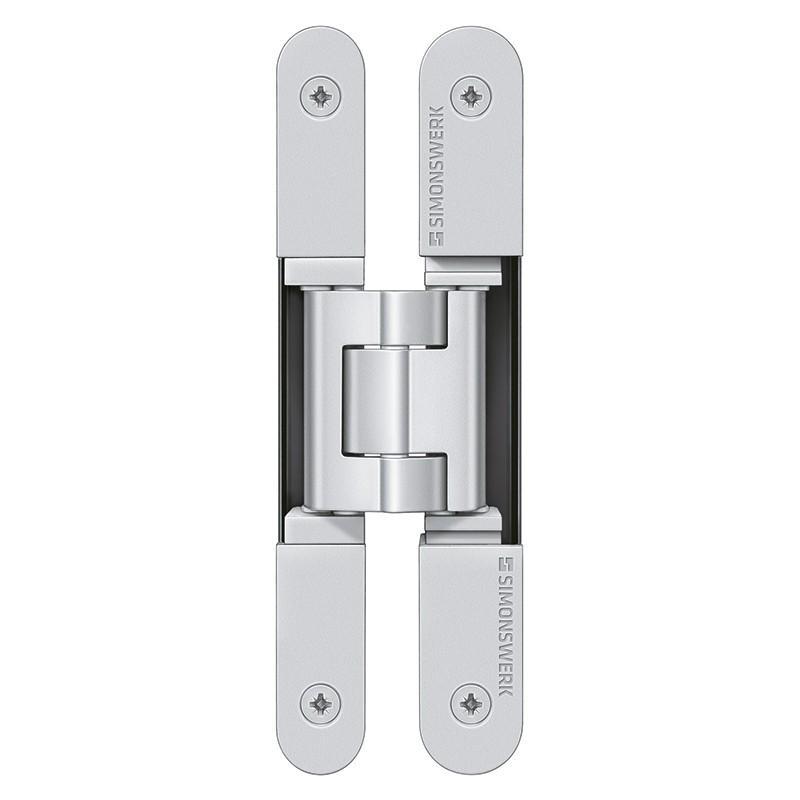

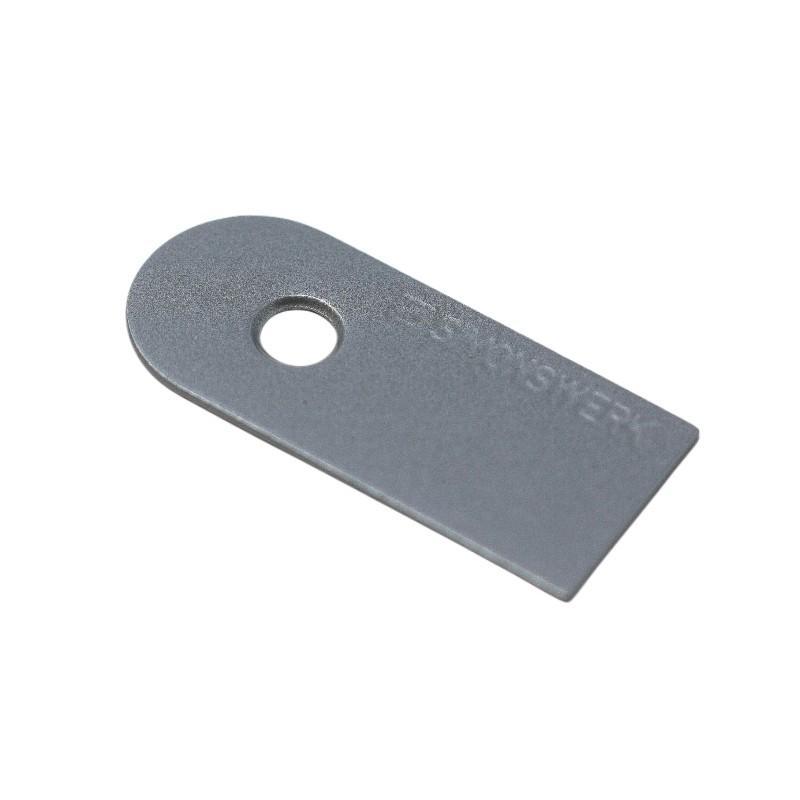

When the door is open, the faceplates and mechanism of the hinge are visible, so they’re available in a range of different finishes, including brass, chrome, nickel, matt black, and bronze. Small cover plates provide a tidy finish, covering the screw fixings. Choose a finish to match or contrast with the finish of the door and frame, or other items of door hardware.

Precise 3D Adjustability

The 3D adjustable design of Simonswerk TECTUS hinges allows precise alignment in height, depth, and lateral dimensions. This adjustability ensures perfect fitting and smooth operation over time, reducing the need for unnecessary maintenance. The TE 240 3D has compression +/- 1mm, side adjustment +/- 3mm,  and +/- 3mm height adjustment.

These TECTUS hidden hinges are maintenance-free and do not need oiling. Applying oil can damage the hinge. Visual and functional checks should still be undertaken as part of your regular door maintenance routine. Adjust the hinge as necessary, making sure it doesn’t bind or inhibit the door opening or closing.

Simonswerk recommends a door bottom gap of 7mm, and based on door weight or width, there could be slight sagging over the opening angle. These hinges can be fitted with drop down seals such as the Lorient LAS8001. Make sure to avoid additional load on the bottom hinge by adjusting the seal to lessen pressure on the floor.

Easy Installation and Versatility

Simonswerk TECTUS TE 240 3D concealed hinges are compatible with various door and frame materials, including timber and aluminium. The suggested cutter diameter is 16mm, with a 30mm collar ring. Specific routing data is available for steel, casing, and block framing. Templates for the frame and door leaf, plus a universal milling frame, are available, so contact us for more details on these additional items.

The 60kg adjusted door weight is based on 2no hinges installed on a 2000x1000mm door leaf, with a hinge spacing of 1450mm. Door hinge load capacities should factor in the door weight and additional stressors such as door closers or a high frequency of use. Depending on the circumstance, this could require a third hinge being fitted, or upgrading to a different model with increased load bearing.

Redefining Your Doors

Selecting TECTUS concealed door hinges means embracing exceptional quality, no maintenance, and proven performance. Whether for new builds or refurbishment work, concealed hinges enhance door functionality and aesthetics, easily fitting into any room or building design scheme. Choose Simonswerk TECTUS to confidently deliver stylish and reliable door hanging solutions.
