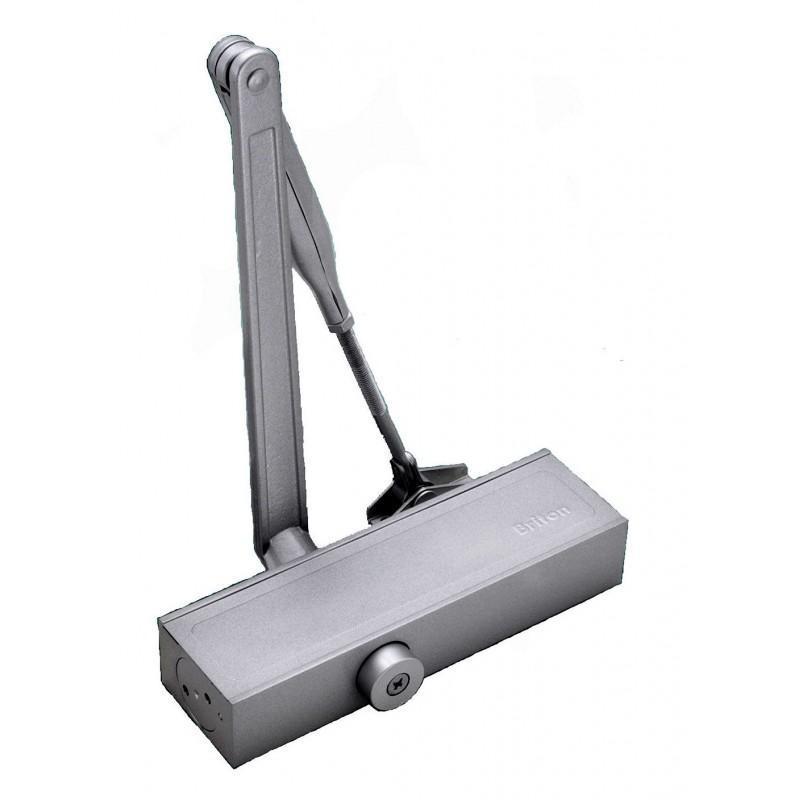

Briton 1120B EN 2 - 4 Door Closer Silver

Briton 1120B EN 2 - 4 Door Closer Silver

The Briton 1120B is a low to medium duty, adjustable power size EN 2-4 door closer with backcheck. This closer is suitable for universal door applications and has a silver finish.



DCB1120B

The Briton 1120B is a low to medium duty, adjustable power size EN 2-4 door closer with backcheck. This closer is suitable for universal door applications and has a silver finish.

Read more
£43.25 VAT excl.
£51.90 VAT incl.

Description

The Briton 1120B is a fully adjustable power size EN 2-4 spring adjustable, overhead door closer. It is CE marked and Certifire approved CF388 and is suitable for use on fire doors. The rack and pinion unit is supplied complete with backcheck which helps provide a cushioning effect to prevent damage to the door and frame.

  • Variable Power Size EN 2-4
  • Trimplate Cover
  • Screw thread arm
  • Suitable for Exterior and interior doors
  • Suitable for doors 750-1100mm
  • Suitable for doors weighing 20-80kg
  • Adjustable power by template only
  • 120 minute Fire Rating – Timber Doors
  • 240 minute Fire Rating – Steel Doors
  • Backcheck – prevents damage to door and frame
  • Universal Application - for push or pull side mounting
    Figure 1/61 – For pull side mounting/transom mounting
    Figure 66 – Push Side Mounting
  • Adjustable closing and latching speeds
  • 38.5mm x 236mm x 60mm
Silver
Fig 61 - Push Side Transom Mounting
Fig 66 - Push Side Mounting
Fig 1 - Pull Side Mounting
