Retro-V UNION Overhead Door Closer | EN 3-4

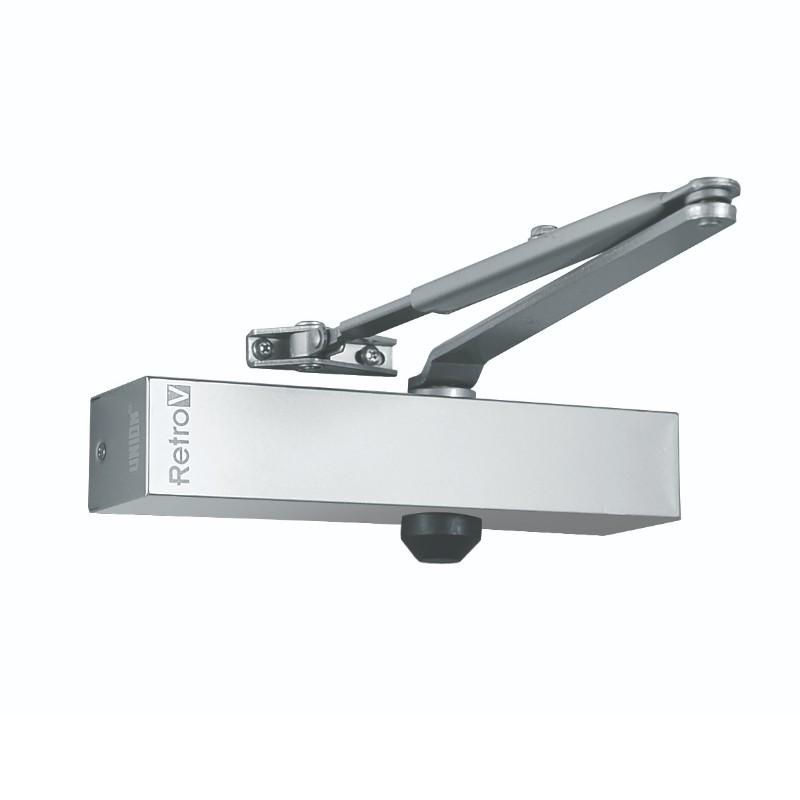

UNION Retro-V Adjustable Size EN 3-4 Door Closer

The UNION Retro-V door closer is a reliable and versatile solution for controlling doors in commercial and public buildings. Its variable power size and fire door compliance ensure reliable performance across various door types. It is fire rated for use on timber and metal doors and can be used for 1st fit applications and retrofitting, providing the flexibility needed for installers.

Key Product Features:

• Adjustable power size EN 3-4
• Universal fitting - Fig. 1, Fig. 61, Fig. 66
• Non-handed
• Silver finish
• Rack and pinion mechanism
• Maximum door weight: 80kg
• Maximum door width: 1100mm
• Adjustable closing speed
• Adjustable latch action
• Maximum opening angle: 130°
• Minimum door thickness: 44mm
• Complete with parallel arm bracket
• CE marked
• Certifire Approved
• UKCA marked
• Fully certified to BS EN 1154
• BS EN 1634-1 approved for use on fire rated doors up to 120 mins (timber) 240mins (metal)
• 10 year manufacturer’s guarantee
• Supplied with fixings
• Weight: 2.6kg

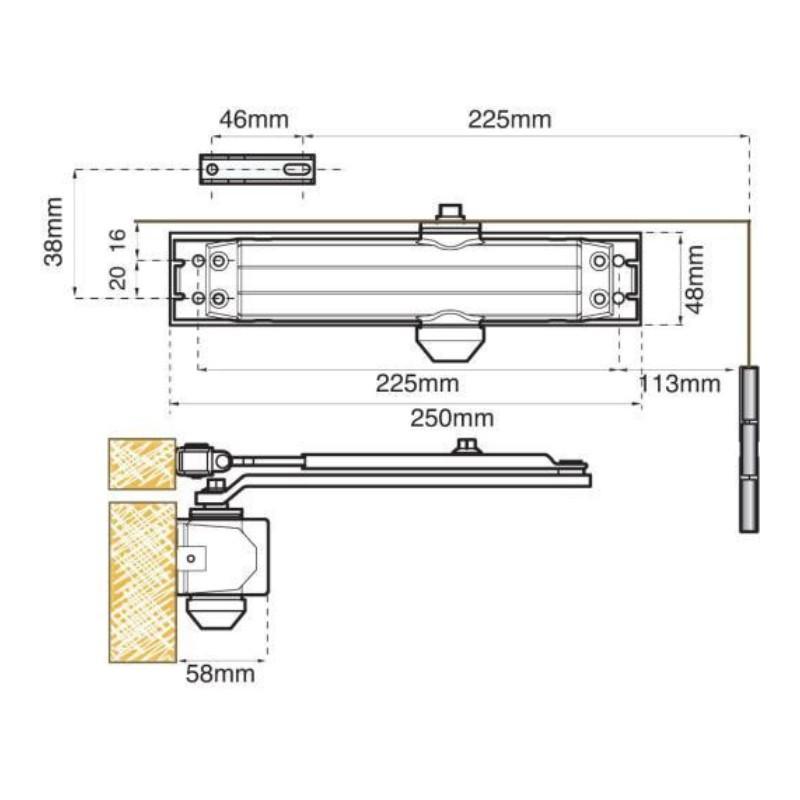

• Dimensions: 250mm x 58mm x 48mm

Identical fixing dimensions to widely used overhead door closers like the Briton 2003, for quick and hassle-free retrofitting. This unit is supplied with fixing templates for a swift on-site installation.

Adjustable power for maximum flexibility - EN 3-4 for push and pull side application and on-door adjustments.

Fire rated for timber and metal doors, ideal for fire safety compliance in a range of facilities.

Adjustable closing forces to suit different door weights and sizes. Two valves control the closing speed down to 15° and latching action from 15-0°.

Universal design with parallel arm bracket included for seamless installation.

Suitable for first fix and retrofit applications, saving time and reducing labour costs.

Effortless Retrofitting and Installation

The UNION Retro-V variable power size closer has been designed with simplicity and practicality in mind. Its identical fixing dimensions and footprint to popular UK door closers ensure a seamless replacement process without the need for extensive rework or making good.

This not only reduces installation time but also minimises disruption, making it an efficient choice for busy facilities or construction projects. Whether you’re upgrading outdated or damaged hardware following a fire door inspection or starting a new build, this closer delivers professional results.

Flexible Power for Versatile Applications

This UNION door closer is non-handed with adjustable power. The Retro-V caters to doors with different weights and usage requirements. Tested to EN 3 and EN 4 in all 3 fixing positions, it is suitable for a wide range of environments. The ability to fine-tune the closing forces provides added versatility, helping you achieve smooth and controlled operation every time.

This flexibility makes it a trusted solution for commercial, educational, healthcare, and other public spaces requiring secure and efficient door closing.

Fire Safety Compliance

Safety is a top priority, and the UNION Retro-V is engineered to meet strict fire test standards. It is fully certified for use on both fire-resistant timber and metal doors, offering peace of mind in fire-critical applications. This compliance makes it a dependable choice for buildings that must adhere to rigorous safety regulations, including schools, offices, and care facilities.

If you need compliant hold open function on a fire door, install this closer with an electromagnetic door holder. The UNION DoorSense fire door retainer is available in a black or white finish and also suits fire doors up to 120 minute rating.

A Reliable Choice for Your Facility

The UNION Retro-V overhead closer combines ease of installation, flexibility, and fire safety compliance to deliver a product that meets the diverse needs of modern buildings. Its non-handed design, adjustable power settings, and suitability with both retrofit and first-fit applications make it an invaluable asset for those needing efficient and dependable fire door ironmongery. Choose the UNION Retro-V for your next project and experience the difference in performance and reliability.
