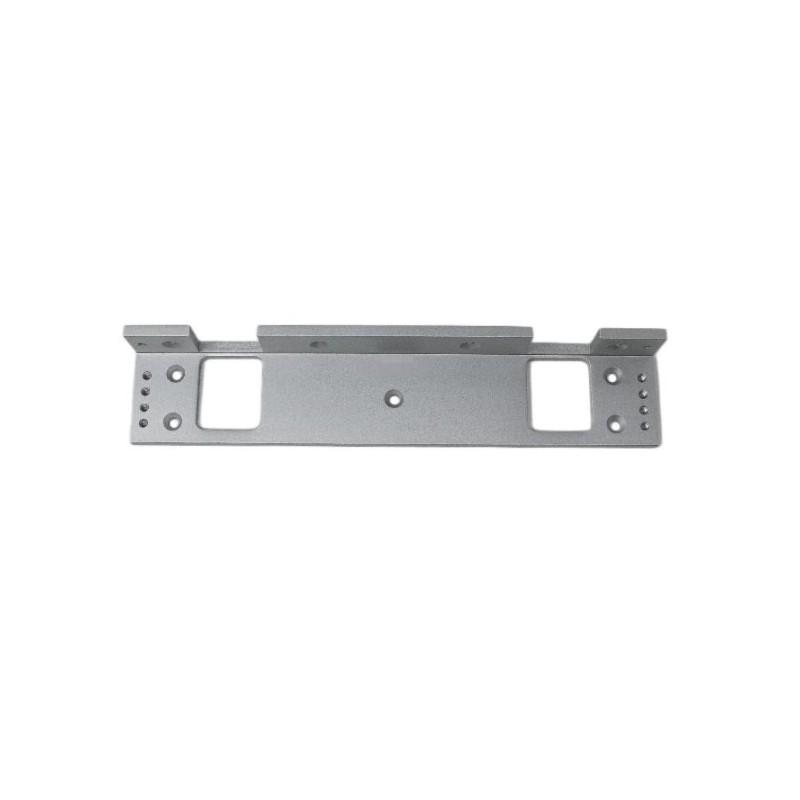

V3SR Maglock L Bracket for Outward Opening Doors
The CDVI 300-L V3SR L bracket is designed to mount compatible internal maglocks on outward opening doors. It allows the magnet body to be fixed to the door frame where direct mounting is not possible.
Accurate bracket selection is essential for achieving the full rated holding force of the V3SR maglock, avoiding misalignment, and providing a secure installation.
Key Product Features:
- MPN: 300-L
- L bracket for CDVI maglocks with 300kg or 400kg holding force
- For outward opening doors
- Suitable for internal use only
- Multiple mounting hole options
- Satin anodised aluminium finish
- L Bracket Dimensions: 248mm x 50mm x 30mm
- Weight: 0.21kg
This maglock L bracket is compatible with the following CDVI models:
- V3SR
- C3S11
- C3S12*
- SD300M*
*Two brackets will be needed for double maglocks; alternatively, a dedicated double L bracket is available. Contact our team to enquire about a special order.
Versatile L Bracket for Flexible Maglock Mounting
This L bracket adapts to your installation, giving you the flexibility to achieve accurate alignment. Multiple fixing holes across the face and side allow you to select the most suitable position for your setup, helping to maintain consistent contact between the magnet and armature.
You can choose from several mounting positions for the maglock body at the time of installation, without the need for on site modification. This makes it easier to work around frame depth, door design, or existing hardware.
For inward opening doors, the CDVI 300-ZL Z and L bracket set is available in a standard or architectural option.
Maglock Mounting Bracket for Internal Door Control Systems
The CDVI 300-L L bracket plays an important role in an access control setup by ensuring your maglock is installed securely and aligned for consistent performance.
Consider how the bracket and maglock fit into your wider system to get the most out of it. CDVI offer a range of solutions, including a 7-day timer that allows you to schedule unlocking times to suit your building’s routine, while a Galeo keypad supports up to 100 user codes for controlled PIN access.
If a surface mounted maglock is not suitable for your door, an electric strike can provide an alternative locking method while still supporting controlled access.
Professional Bracket Solution for Surface Maglock Installations
The CDVI V3SR L bracket provides a dependable and compliant method of fixing surface-mounted maglocks on outward opening doors in internal environments. It supports full magnetic contact, consistent long term performance, and simple installation across a wide range of door materials and settings.
