Adams Rite 281 Maglocks | Armlock Standard Double Magnet

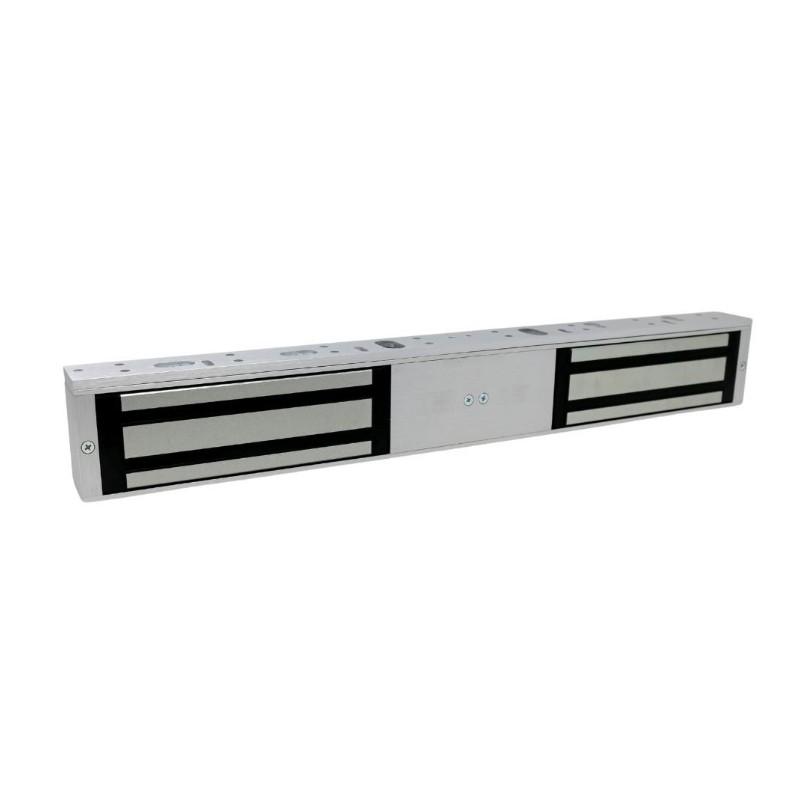

Adams Rite 281 Double Maglocks – Double Door Locking

The Adams Rite Armlock 281 double maglocks provide an easy-to-integrate security solution for double doors. Designed for commercial, public, and industrial buildings, these maglocks deliver robust locking strength and flexible mounting options.

With a holding force of 510kg per magnet, these double electromagnetic locks secure both leaves of a double door, making them ideal for main entrances, corridors, and controlled access areas. Their surface-mounted design simplifies installation, and they are compatible with timber, aluminium, and steel doors.

Key Product Features:

• Satin aluminium finish
• Monitored and unmonitored versions available
• Dual voltage 12V/24V DC
• Current: 960mA/480mA
• +/- 15% tolerance
• 510kg (1120lbs) holding force per magnet
• Maximum door gap: 3mm
• Surface mounting
• Operating temperature: -20 - +60°C
• Fail safe (power to lock)
• For timber and metal doors
• Built-in voltage spike suppressor
• Tested to EN61000-6-1 and EN 61000-6-3
• Various brackets available
• 3 year manufacturer guarantee
• Double magnet dimensions: 532mm x 73mm x 40mm
• Armature plate dimensions: 160mm x 61mm x 16mm
• 281-200 unmonitored maglock weight: 9.2kg
• 281-205 monitored maglock weight: 9.4kg

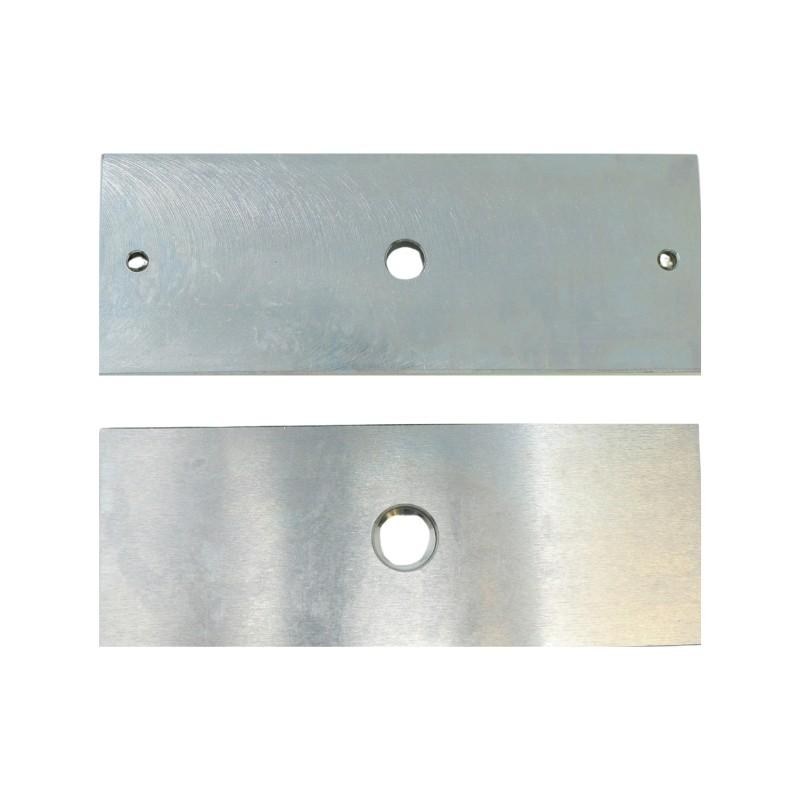

Dual-Door Locking – Secures both leaves of a double door with two maglocks in one housing, reducing installation time. Two small armature plates are supplied with the double maglocks. The Armlock 281 is also available as a single door unit, monitored or unmonitored.

Fail-Safe Design – Automatically releases when power is lost, allowing for quick and easy egress for users. For fail secure locking, consider an electric strike or motor lock.

12V/24V DC Operation – Dual voltage compatibility allows for easy integration into different access control systems. Check the operating voltage on site when retrofitting to an existing door.

Monitoring Option – Armlock 281-005 model has built-in monitoring (hall effect) and relay dry contact with LED.

Versatile Compatibility – Works with access control systems and can be released by keypads, card readers, and push to exit buttons. For immediate release, the release switch needs to break the circuit on the positive supply to the magnet.

Mounting Accessories Available – Compatible with a range of brackets for tailored installation. As standard, this lock suits outward opening doors. Use compatible Z and L brackets for inward opening door installation.

Secure a Double Door with One Locking Unit

The 281-200 and 281-205 Adams Rite maglocks are purpose-built for double door security, eliminating the need for separate locking mechanisms. This all-in-one design reduces wiring complexity while maintaining high-strength holding power for each door leaf.

They are widely used in corridors and perimeter doors where controlled access and quick egress are equally important. Whether securing timber internal doors, main entryways, or restricted access areas, maglocks deliver reliable, efficient locking.

A Complete Solution for Double Door Security

For facilities requiring high-performance locking across double doors, the Adams Rite 281 maglocks deliver a secure, fail-safe, and easy-to-install solution. Their combination of holding force, dual voltage, and door material compatibility makes them an essential choice for electric locking on access control doors.

With dual-door locking in a single unit, these maglocks provide a streamlined security solution that balances strength, reliability, and ease of integration into a variety of doors across a range of built environments.
