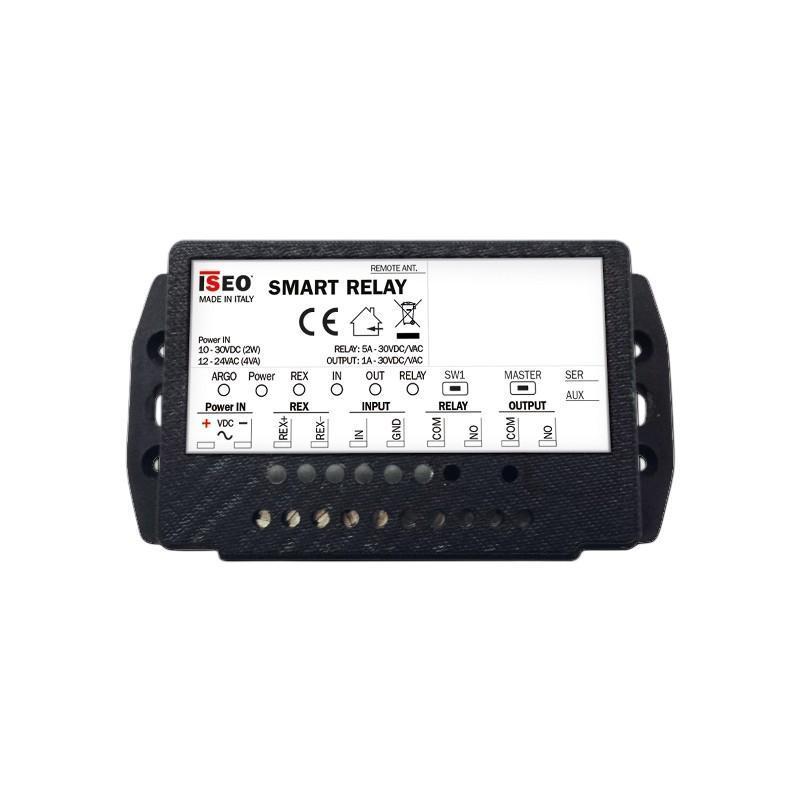

ISEO Smart Relay | Built-In Bluetooth
The ISEO Smart Relay allows electric locks and actuators to be added to an Argo smart system.
Read moreISEO Argo Smart Relay for Electrically Operated Entrances
The ISEO Smart Relay is a compact control device designed to make electrically operated entrances part of a connected smart access control system. The relay allows electric locks, automatic doors, motorised gates, or other electrical actuators to be activated by closing a contact, enabling remote control through the ISEO Argo app.
Key Product Features:
- MPN: IS5E065501
- Built-in Bluetooth antenna*
- Connected control device for electrically operated entrances
- Compatible with the ISEO Argo app
- Allows activation of electric locks, gates and electrical actuators
- Bluetooth Low Energy 5.1
- Stores up to 300 user credentials
- Records the last 1000 access events
- Ability to block standard users and allow VIP access only
- Programming and updates via the Argo mobile app
- REX input for request-to-exit button connection
- Opto-isolated input for external activation
- Output relay configurable as NO or NC
- Power supply: 10–30 V DC (2W) or 12–24 V AC (4VA)
- Mounting options: wall mounted, flush mounted, or DIN rail 35
- Working temperature: −25°C to +70°C
- Black technopolymer housing
*A model with an external antenna is available as a special order and is well suited to unconventional installation spaces. Contact us to enquire.
What Is Included
- 1 Smart Relay device
- Programming mode plastic pin
- DIN rail mounting clip with screws
- Installation guide
Smart Access for Doors and Gates with Electric Locks
The ISEO Smart Relay is suitable for activating a wide range of devices. By connecting the relay to an existing electric lock or actuator, the access point can be integrated into the ISEO Argo smart access platform. Authorised users can then activate the connected entrance using their smartphone or Apple Watch through the Argo mobile app.
This allows existing entrances to be added to an ISEO smart system without replacing the current hardware. Other ISEO smart locks, such as smart door handles and smart euro cylinders, can be used to create a complete system managed through the Argo app. For remote management and unlocking, the ISEO Smart Gateway can also be added.
Access Control Compatible With Automatic Door Systems
The ISEO Smart Relay can also be used alongside automatic door openers. The relay can trigger electrically operated doors, making it suitable for integrating automatic entrances into an ISEO smart access system.
To help users understand how the entrance operates, we also offer a range of automatic door signage, including signs for access controlled powered doors, which are particularly suitable for doors fitted with this smart relay.
Contact our technical team for more information on automatic door systems.
