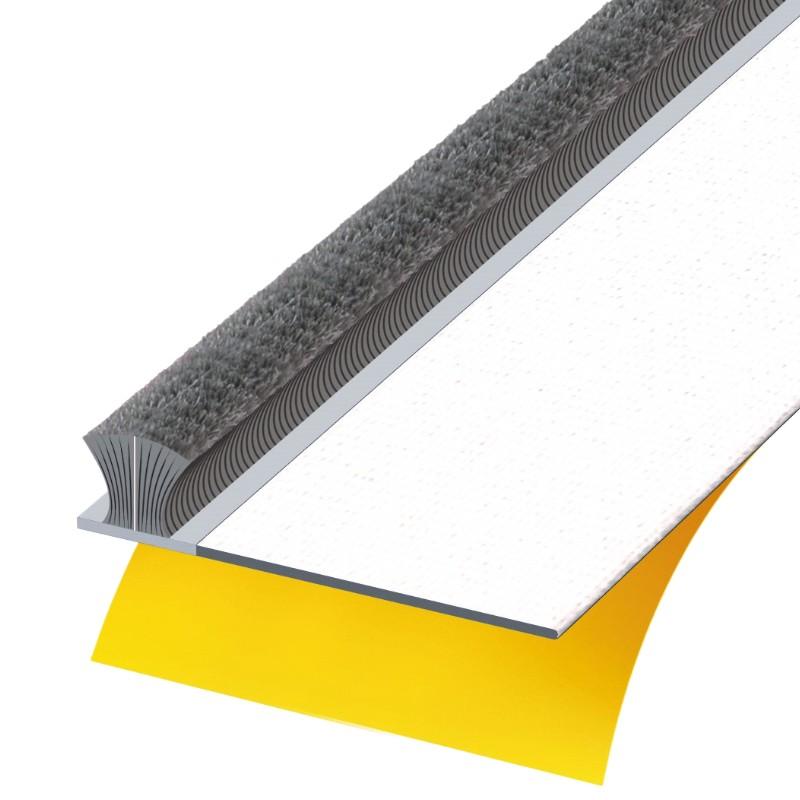

Exitex Surface Mounted Intumescent Fire & Smoke Seal 5200mm

Exitex Surface Mounted Intumescent Strip

This Exitex surface mounted intumescent fire and smoke seal is a 5.2m self-adhesive strip designed for retrofitting 30 minute fire rated timber doors tested to BS 476: Part 22. It requires no routing or specialist tools, making it ideal for maintenance, upgrade, or compliance works in occupied buildings.

The seal provides dual protection: the intumescent expands in fire conditions to help slow the spread of flames, while the integrated brush limits smoke movement. Supplied with an alcohol wipe and fire door signage stickers, it supports quick installation in commercial, residential, and public buildings.

Key Product Features:

• Exitex 1.31.0932.5200
• Self adhesive surface mounted intumescent strip
• Fire tested for 30 minutes to BS 476: Part 22
• Smoke tested to BS EN 1634-3: 2004
• Suitable for retrofitting
• No routing needed for the door or frame
• Colour coded brush
• Suitable 3-5mm gaps
• Available in white, brown or grey*
• Self adhesive
• 25mm wide
• 1.8mm thick
• 5mm pile height
• Choose from brown, grey and white finishes
• Included: alcohol wipe and fire door sticker

*Available in an oak finish as a special order; contact our team for further information.

Self Adhesive Intumescent Seal for 30 Minute Timber Fire Doors

This Exitex self adhesive surface mounted intumescent strip is tested to BS 476: Part 22 for 30 minutes fire resistance and smoke tested to BS EN 1634-3:2004. In the event of fire, the intumescent material expands to seal perimeter gaps, helping to contain fire and smoke within the compartment and maintain protected escape routes.

Important: This Exitex intumescent strip should only be fitted to timber frames and doors that have been successfully tested for a period of 30 minutes in accordance with the criteria of BS 476 Part:22:1987. Use on non-certified or incompatible doors may invalidate fire test evidence and compromise building safety.

See our full range of fire door seals for intumescent solutions suitable for both 30 and 60 minute applications.

How to Install the Exitex Intumescent Strip

This Exitex intumescent seal is designed for fast, no-routing installation. It’s suitable for retrofit and maintenance works where time and access are limited. The self adhesive backing provides a clean application, and the included alcohol wipe prepares the surface.

• Clean surfaces with the supplied alcohol wipe to remove dust and grease.
• Remove the backing tape and position the brush at the door stop. Smoothing the seal along the frame.
• Apply around the door frame, including over the hinges and latch. Use a sharp knife to cut at the corners for a tight fit. Cut around the latch plate to allow the latch to engage when the door is closed.
• Check that appropriate fire door signage is used.
• Allow the self-adhesive to cure overnight.

Fire Door Signage

Fire door signage must be installed correctly to support compliance. Fire door stickers are included with this product. However, additional or alternative signage may be required depending on the door type and usage.

For example:

• Fire Door Keep Locked signs are only required on one side of the door.
• Automatic Fire Door Keep Clear for doors fitted with electromagnetic hold open or swing free door closers.

Explore our full fire door signage range, available in a variety of finishes, including matt black, polished brass, and more, to complement your door hardware.
