Intumescent Kit for Simonswerk TECTUS TE 527 3D Hinges

Intumescent Kit for Simonswerk TECTUS TE 527 3D Hinges

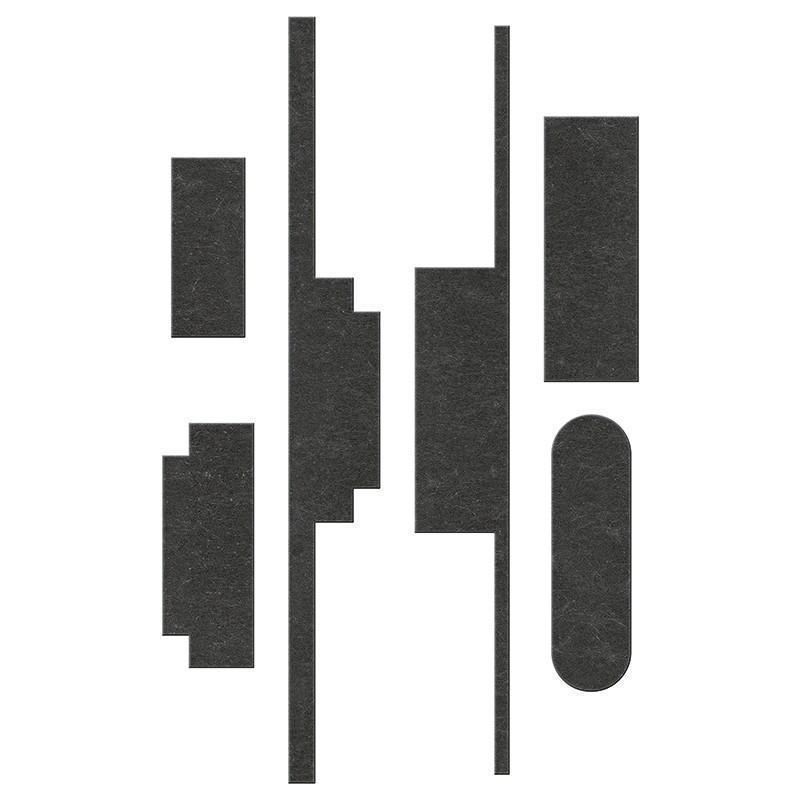

The intumescent kit for Simonswerk TECTUS TE 527 3D concealed hinges ensures essential fire protection without compromising door performance or appearance. Designed specifically for use with TECTUS TE 526 3D and TE 527 3D hinges, this intumescent kit helps maintain the integrity of fire rated doors in the event of a fire. One kit is needed for each hinge.

Key Product Features:

• Black finish
• 1mm thick
• Suitable for 30 and 60 minute fire doors
• Tested to BS EN 1634-1:2014
• 6-piece kit
• Mono-ammonium phosphate
• Self-adhesive backing

Compatible with:

• TECTUS TE 526 3D hinges
• TECTUS TE 526 3D Energy hinges
• TECTUS TE 527 3D hinges
• TECTUS TE 527 3D Energy hinges

TECTUS Fire Rated Hinges for Essential Passive Fire Protection

When fitting Simonswerk TECTUS TE 527 3D concealed door hinges to a fire rated door, it is critical to install an approved intumescent kit. This intumescent kit is tested for use with 30 and 60 minute timber fire doors.

In the event of a fire, the intumescent protection expands, sealing the gaps around the hinge cut-out. This slows the spread of fire and smoke, supporting safe evacuation and providing protection for emergency services.

To ensure full compliance, always check the fire door’s test evidence and refer to the Certifire certification.

We supply a wide range of fire door ironmongery, including door hardware and fire and smoke seals, and more. Explore our range today or contact our technical team for tailored advice.

Easy Installation for Consistent Results

This 8820 intumescent kit is supplied pre-cut to suit the TE 526 3D and TE 527 3D concealed hinges, ensuring a precise fit and simplifying installation on site. Designed with efficiency in mind, it features a self-adhesive backing for quick and secure application.

Each kit includes all required components for one hinge, covering both the door and frame sides to maintain fire integrity around the entire hinge area. Ensure that one kit is used per hinge.

Designed to Suit TECTUS Hinges

This intumescent kit is compatible with the Simonswerk TECTUS TE 526 3D, TE 527 3D, TE 526 3D Energy and TE 527 3D Energy concealed hinges. These products form part of the wider TECTUS range, delivering a discreet door hinge solution that does not compromise on functionality.

The TE 527 3D concealed hinge is available on our website in satin chrome and satin nickel finishes. We also stock a comprehensive range of coordinating door hardware in matching finishes, including bolts, lever handles, and fire door signage.

For additional finish options, contact our team to enquire about special order variants of the TE 527 3D hinge or explore other TECTUS concealed hinges, such as the TE 540 3D, available in finishes including bronze and matt black.
