GEZE TS550E EN3-6 Electromagnetic Hold Open Floor Spring
Have a question about this product? Get in touch

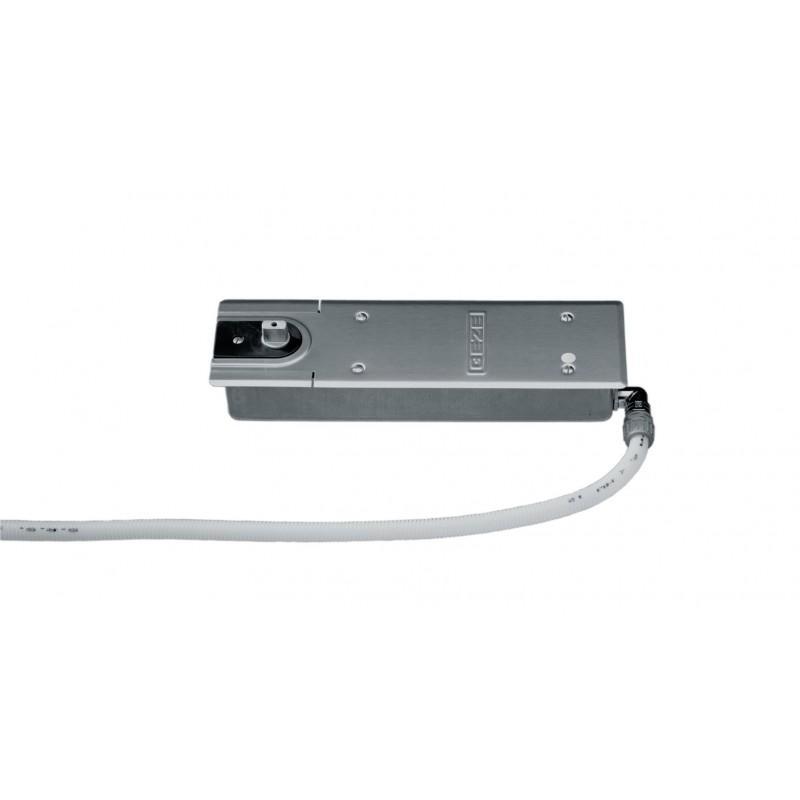

GEZE TS550E EN3-6 Electromagnetic Hold Open Floor Spring - Single Action - Mechanism Only

GEZE TS550E EN3-6 Electromagnetic Hold Open Floor Spring - Single Action - Mechanism Only

The GEZE TS550E Power Size EN 3-6 Floor spring for interior single and double action doors up to 1400mm wide comes with flat-tapered spindle, adjustable closing force, adjustable closing speed,adjustable latch action, electromagnetic hold-open and galvanised steel concrete box. Mechanism only.



DCG550E-L

The GEZE TS550E Power Size EN 3-6 Floor spring for interior single and double action doors up to 1400mm wide comes with flat-tapered spindle, adjustable closing force, adjustable closing speed,adjustable latch action, electromagnetic hold-open and galvanised steel concrete box. Mechanism only.

Read more
£406.50 VAT excl.
£487.80 VAT incl.

Description

The GEZE TS550E Power Size EN 3-6, Floor spring is suitable for interior single and double action doors up to 1400mm wide. The very low overall height of just 42 mm is a welcome benefit for both new building and renovation projects. The floor spring is supplied with a flat-tapered spindle, adjustable closing force, and adjustable closing speed, adjustable latch action, electro-mechanical hold-open and galvanised steel concrete box. This product is the mechanism only - Accessory Packs with necessary straps, cover plate and intumescent are sold separately.

  • Overall height 42mm
  • Suitable for Single Action doors
    Suitable for Double Action Doors but will only hold one way.
  • Suitable for doors up to 1400mm wide
  • Suitable for doors up to 250kg
  • Infinitely adjustable hold-open device 80°-165°
  • Closing force adjustable Power Size EN 3-6 according to EN1154
  • Backcheck – helps prevent damage to door and frame
  • Closing speed adjustable
  • Latching action adjustable
  • Safety valve prevents deliberate overloading
  • Large adjustment range: height 6mm, lateral 10mm, length 10mm,
  • Galvanised cement box
  • Fixed opening buffer
  • End stop and closing speed can be adjusted
  • Can be used with both single swing and double action doors
  • All settings can be made from above
  • Suitable for use on 30 minute fire doors if used with intumescent pack
24V DC
Satin Stainless Steel
Mechanism Only
