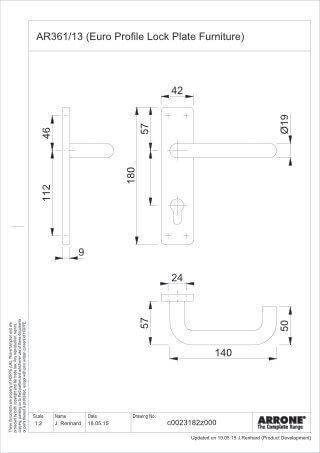

ARRONE AR361/13 Stainless Steel Euro Lever Lock Handle on Backplate
The ARRONE AR361/13 Stainless Steel Euro Lever Lock Handle on Backplate is a 19mm diameter satin stainless steel euro lever lock backplate furniture. This product is supplied with wood screws and bolt through fixings.
It is manufactured from grade 316 stainless steel. Select the centre size to suit your lockcase.
Read moreKey Product Features:
- Lever handle on backplate
- Grade 316 stainless steel
- Compatible with euro profile cylinders
- Choice of 47.6mm or 72mm centres
- 8mm spindle
- For doors 40-50mm thick
- Including on successful BS EN 1634-1 test
- Suitable for FD30 and FD60 timber fire rated doors
- Suitable for FD240 steel fire rated doors
The ARRONE AR361/13 Stainless Steel Euro Lever Lock Handle on Backplate is supplied with both wood screw and bolt through fixings and a Grub screw fixing onto 8mm x 110mm spindle. It is suitable for 40mm to 50mm door thickness. The Bolt through fixings are suitable for UK size locks and DIN standard locks. Meets the dimensional recommendations of BS8300 and Approved Document "M"
