Lorient LAS8002 Automatic Drop Seals | Face Fix

Lorient LAS8002 Face Fix Drop Seal – Slimline Sealing

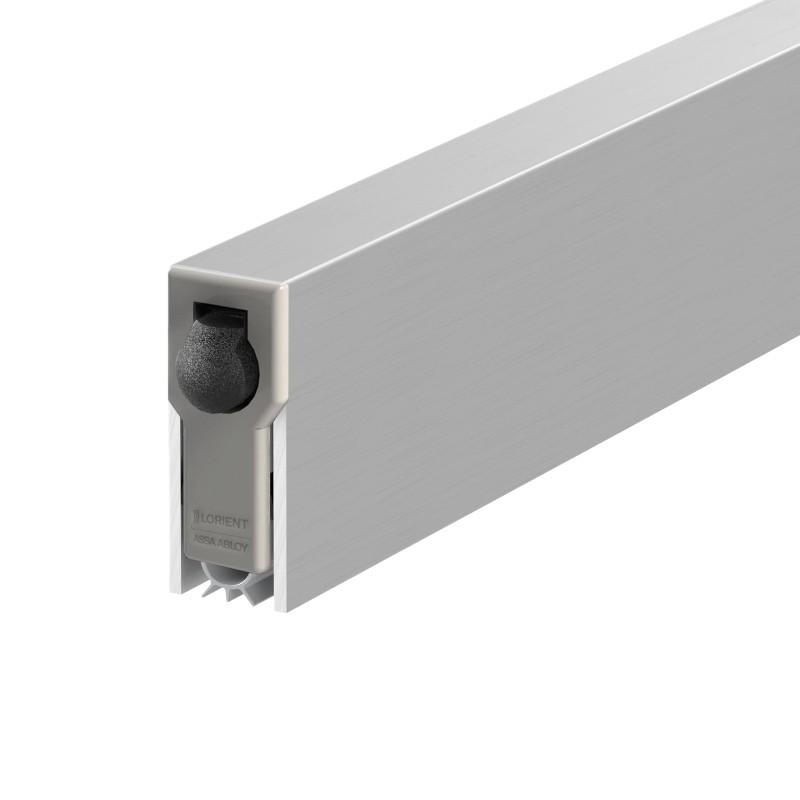

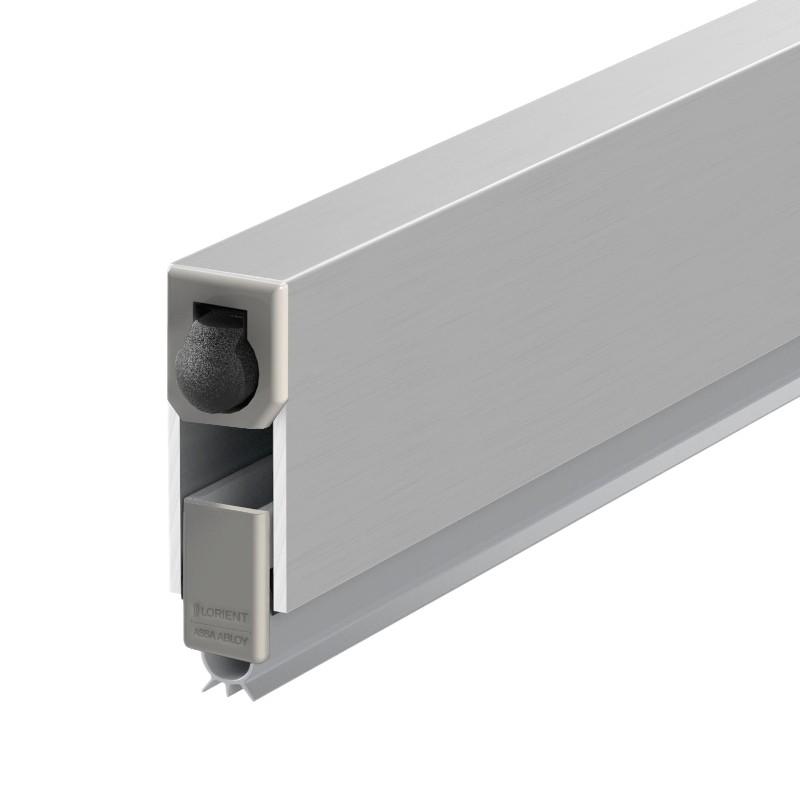

The Lorient LAS8002 automatic drop seal delivers superior protection and proven reliability. It is designed specifically for sealing the gap at the bottom of single swing timber doors. Ideal for fire and smoke doors, this robust drop down seal activates automatically when the door closes, effectively blocking smoke and sound without hindering door functionality.

Key Product Features:

• Silver anodised aluminium finish
• Slimline design
• Matching 2-part grey end caps
• Grey silicone rubber gasket
• Available in a range of sizes
• Each length can be cut to the next size down
• Face fixing
• High efficiency mechanism
• Non-handed
• Suitable for right and left-handed doors
• Suits single action timber doors
• Requires no power connection
• Seal activates automatically when door is opened and closed
• Gap size: 1mm - 13mm
• Adjustable seal drop height
• Self-levelling on uneven surfaces
• Suitable for wheeled traffic
• Smoke tested to BS 476-31.1:1983 and BS EN 1634-3:2004 (ambient temperature)
• Acoustic tested to 31dB Rw to BS EN ISO 10140-2:2010
• Suitable for use on timber fire doors up to 60 minutes
• Certifire Approved CF5179
• Meets smoke leakage performance requirements of BS 9999
• Body dimensions: 35mm x 14mm (select length)

This seal comes complete with fixing screws, striker button, snap cap, washers, and a 4-piece end cap set.

Advanced Sealing for Enhanced Smoke Protection

Tested for use on timber fire doors, the LAS8002 door bottom seal is specifically engineered for doors requiring dependable smoke containment. It automatically lowers into position as soon as the door closes, creating a tight and secure seal at the threshold. Tested rigorously on timber fire doors, it meets critical smoke leakage performance requirements, including temperature smoke tests as defined by BS EN 1634-3.

With this seal installed, door assemblies remain compliant with strict UK fire safety regulations. It is recommended to install this drop seal with a perimeter seal, like the Lorient Batwing seal. Also, where a tighter gasket seal is required, use a floor threshold plate, like the LAS4010 or LAS4100. It should be checked periodically to make sure the door latches effectively after each operation. And, small adjustments can be made to the seal after installation to ensure a snug fit against the floor or threshold plate at all times.

Acoustic and Draught Reduction Benefits

Beyond its essential role in fire and smoke protection, the LAS8002 Lorient seal provides significant acoustic and draught reduction. Its tight sealing action reduces noise transfer between rooms, improving privacy and comfort.

Additionally, the seal blocks unwanted draughts, contributing to increased energy efficiency and a more comfortable internal environment. These added benefits make it an excellent retrofit choice for hotels, healthcare facilities, and educational spaces.

Quick and Simple Installation

The LAS8002 drop seal is designed with practical installation in mind. It features a straightforward, face-fixed fitting method, allowing quick and easy installation. It’s suitable for use on timber fire doors - new or existing. Installation requires minimal preparation, saving valuable time for construction or maintenance staff. The activation button should be fitted on the hinge side of the door and the end caps come in two parts - one for the actuator button and one for the moving rail.

Available in various lengths and trimmable by 100mm, the seal adapts easily to different door widths, ensuring accurate and professional installation results every time. A range of powder-coated finishes are available as a special order, plus different lengths of seal so contact our team today for help with a dependable door hardware solution for your facility.

Trusted Protection at the Threshold

For reliable door seals that offer smoke containment, acoustic insulation, and draught control in a single solution, the Lorient LAS8002 automated threshold seal is the ideal retrofit choice. With proven performance and easy installation, it provides comprehensive smoke and acoustic sealing at the threshold, safeguarding buildings and occupants while contributing to energy-efficient, comfortable interiors.
