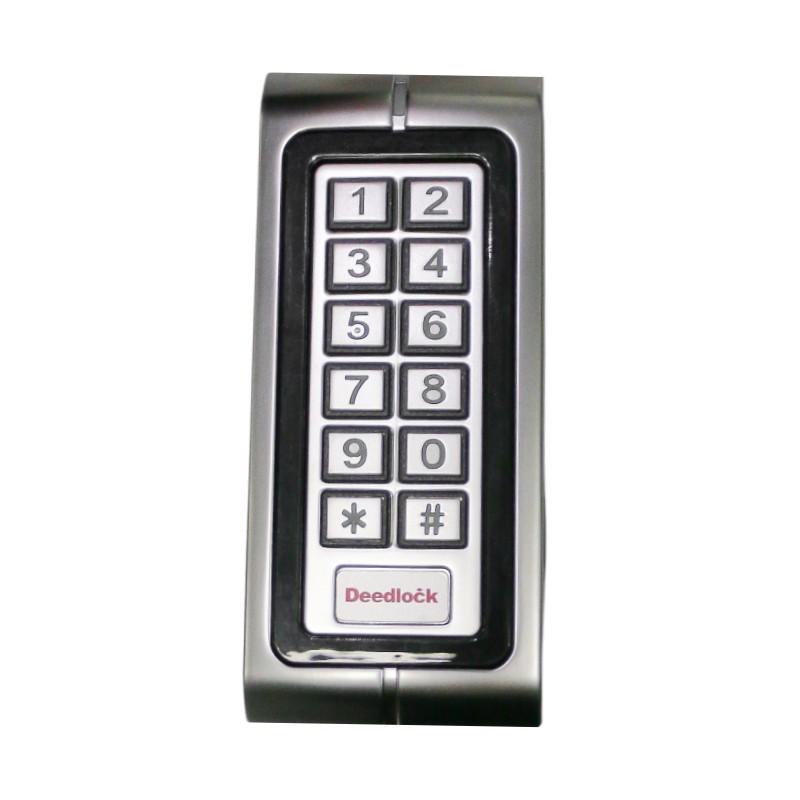

APX-16 Waterproof Keypad & Proximity Reader | IP68

APX16 Keypad and Proximity Reader

The APX16 keypad is a heavy duty solution engineered for demanding environments where durability and reliability are essential. With its dual relay operation, IP68 waterproof rating, and zinc alloy anti-vandal housing, it provides dependable performance for internal and external access points.

This unit supports up to 1,200 users across two zones and allows quick card enrolment for large scale setups. The backlit keypad provides improved visibility in low light conditions.

Proximity cards can be ordered separately.

Key Product Features:

• Heavy duty keypad and proximity reader
• IP68 rated
• Strong zinc alloy anti-vandal case
• Dual relay operation for lock and alarm
• Pulse mode
• Toggle mode
• PIN length: 4-6 digits
• Suitable for up to 2000 users
• Supports 1,200 users across two zones
• Zone 1: up to 1100 pin and card holders
• Zone 2: up to 100 pin and card holders
• Fast block enrolment of up to 1,200 cards in 10 seconds
• Adjustable door opening time from 0–99 seconds

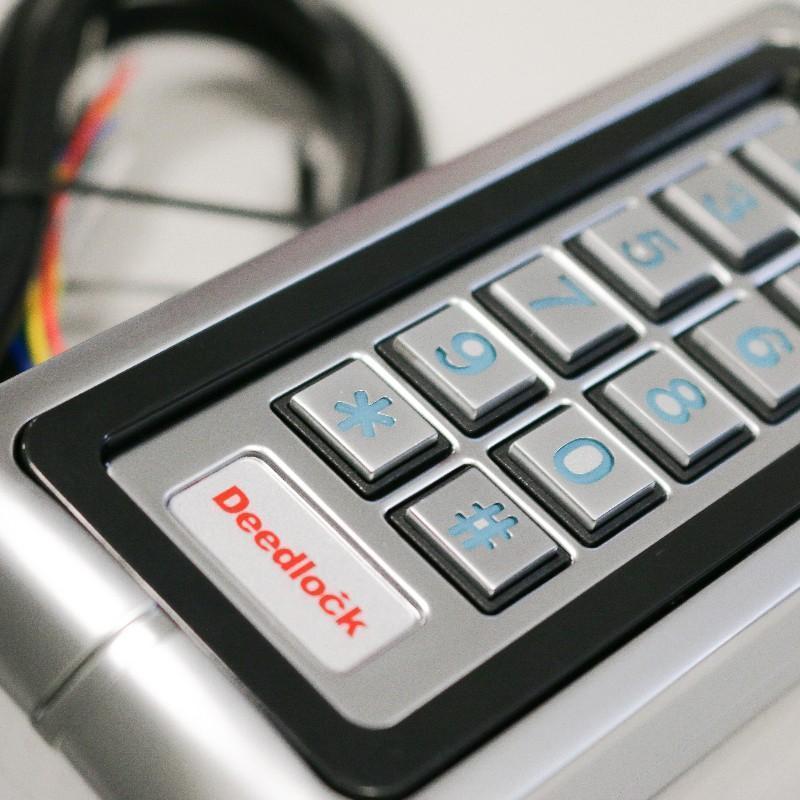

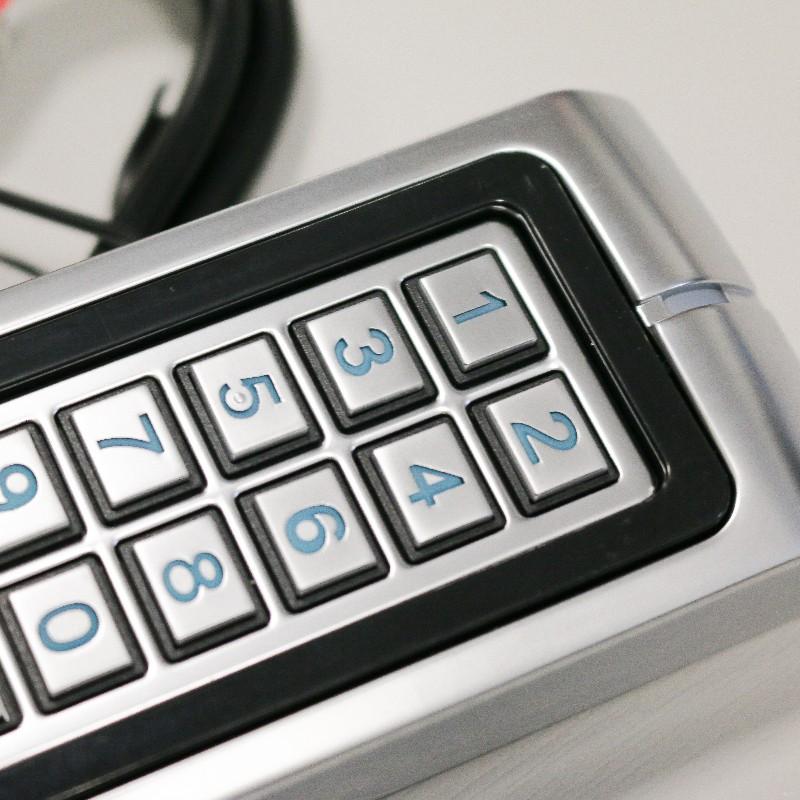

• Backlit keypad for low light operation
• Frequency: 125kHz
• Compatible with EM / MF card types
• Activation distance: 3–6cm
• Power input: 12–18V AC or 12–24V DC
• Current input: twin 2A
• Idle current: <30mA
• Static electricity: <80mA
• Electric lock output: <3mA
• Short circuit protection: <100uS
• Dimensions: 120mm x 56mm x 20mm

Build a Complete Access Control System

Explore our range of compatible access control components, including power supply units, exit devices, and access control relays.

We also stock a wide selection of electric locking solutions, from maglocks and shear locks to motorised and solenoid locks and electric strikes.

Need help selecting the right components? Our expert team is here to support you.
