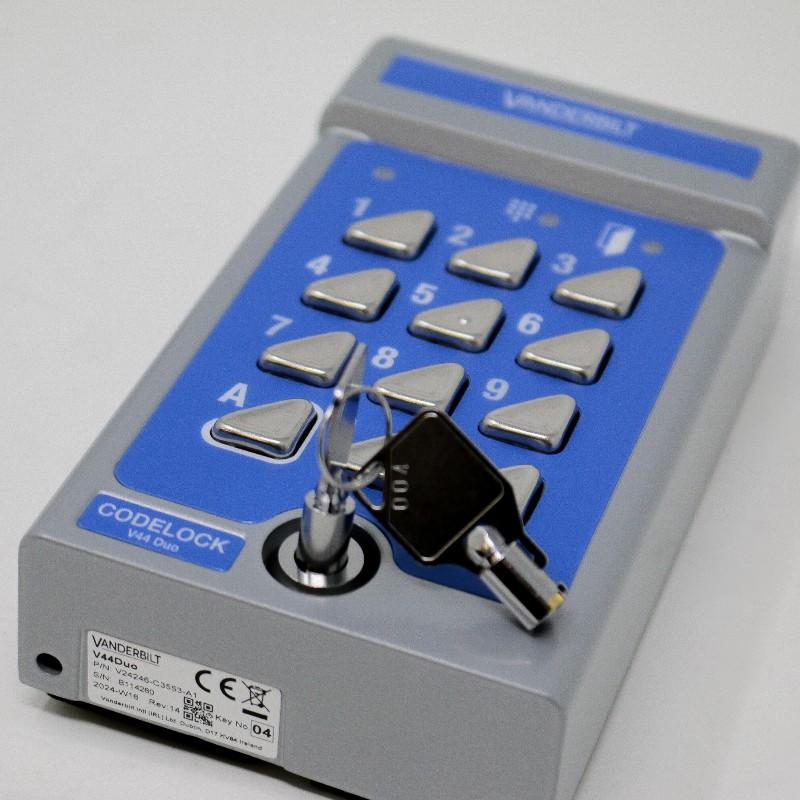

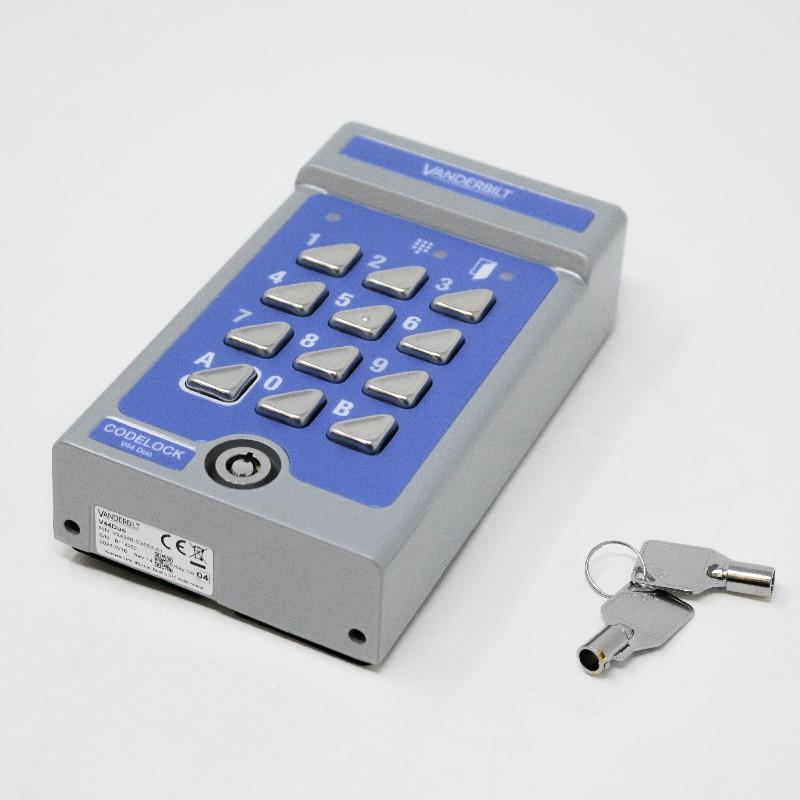

Vanderbilt V44 Duo Keypad
Enlarge Product Image
Ask us a question about this product
Vanderbilt V44 Duo Keypad

Vanderbilt V44 Duo Keypad

The Vanderbilt V44 Duo Keypad has an IP rating of IP54 and a cast metal housing with stainless steel buttons plus a security lock. This Duo keypad is designed for use on one or two doors, using separate codes for two doors, or the same code for both. With two relay outputs, two doors can be controlled at once, or one door plus an additional optional function e.g. operating a light switch.



EKPV44

The Vanderbilt V44 Duo Keypad has an IP rating of IP54 and a cast metal housing with stainless steel buttons plus a security lock. This Duo keypad is designed for use on one or two doors, using separate codes for two doors, or the same code for both. With two relay outputs, two doors can be controlled at once, or one door plus an additional optional function e.g. operating a light switch.

Read more
3 IN STOCK
NEXT WORKING DAY DELIVERY Order before 3:30pm
£175.00 VAT excl.
£210.00 VAT incl.

Description Product Documents
Ask us a question
Ask us a question about this product
Vanderbilt V44 Duo Keypad

Vanderbilt V44 Duo Keypad

The Vanderbilt V44 Duo Keypad has an IP rating of IP54 and a cast metal housing with stainless steel buttons plus a security lock. This Duo keypad is designed for use on one or two doors, using separate codes for two doors, or the same code for both. With two relay outputs, two doors can be controlled at once, or one door plus an additional optional function e.g. operating a light switch.



The Vanderbilt V44 Duo keypad is compact and easy to use with a modern design that is suitable for either indoor or outdoor mounting. The V44Duo is designed for use on one or two doors and has a capacity of twenty four-digit codes and ten six-digit codes. All settings are made directly via the keypad unit.

  • Cast metal housing and stainless steel buttons
  • For one or two doors
  • Security lock
  • 20 four digit user codes and 10 6 digit user codes
  • Single volt free relay
  • Operating voltage 10 - 30 VDC or 8 - 24 VAC
  • Suitable for internal and external applications - (use a rain cover in very exposed locations)
  • IP54 rated
  • Alarm output
  • 75mA current consumption in standby
  • 80x140x40mm

The SH2 protective hood is available as a rain shield, for use in exposed external locations.

Read More

Thumbnail of document
Vanderbilt K44Duo Keypad - Technical Sheet
Thumbnail of document
Vanderbilt K44Duo Keypad - Installation Instructions
Thumbnail of document
Vanderbilt V42 V44 ACT5 ACT5e ACT10 Keypad - Wiring Diagram
