BEA 4Safe Safety Sensor - 900mm

BEA 4Safe Safety Sensor

Gretsch-Unitas GmbH logo

The BEA 4Safe Safety Sensor is for use with automatic operators for door safety.

Read more

£150.00 VAT excl.
£180.00 VAT incl.
Code: ADP4SAFE350
4  In Stock
Shipping Icon
Next working day delivery Order before 3:30pm
Accessories
Reference
Availability
Price
Quantity
Description
Product Documents
Reviews

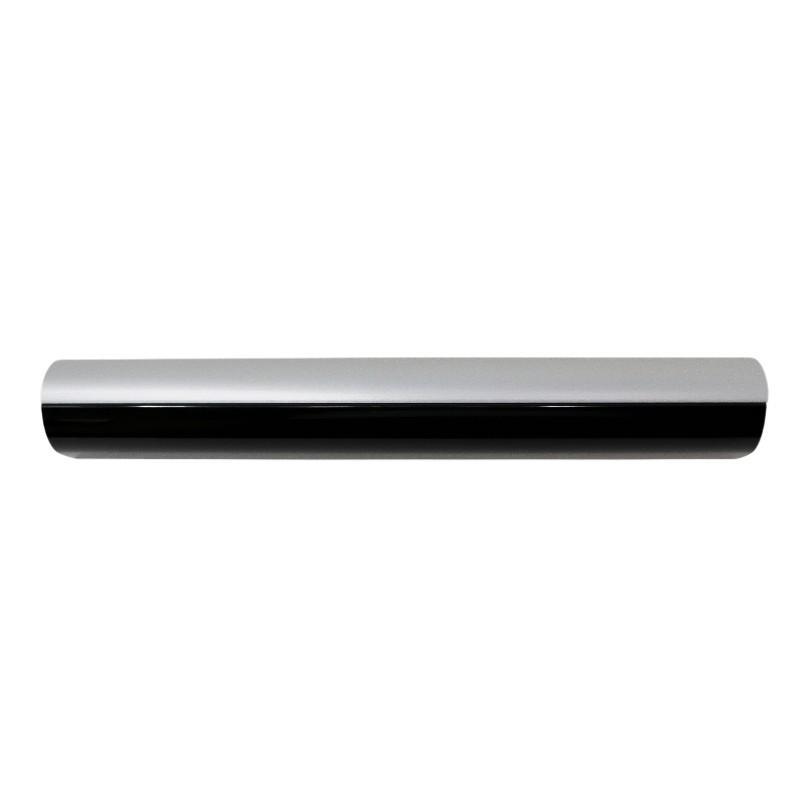

The BEA 4Safe Safety Sensor is for use with automatic operators on swing doors for door safety and is available in two sizes.

These door mounted sensors have the following features:

  • A field size of 400mm x 70mm at a 2m mounting height is provided by the four beams.
  • Mountable from 1.1m - 3m according to floor reflectivity
  • Additional Sensor Boards can be linked in order to extend the field of safety.
    Maximum of 4 Modules or 6 if 24V DC
  • 2 Relay Output
  • IP54 Rated - weather cover available
  • Supply Voltage: 12V-24VAC with 10% tolerance
    12V-30V AC with a -5% or +10% tolerance.
  • Maximum Contact Voltage - 30V DC
